Graphics card overview

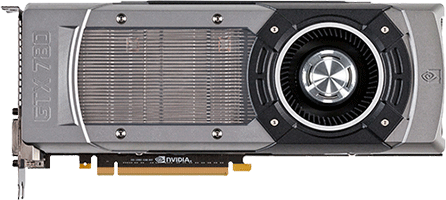

GeForce GTX 780

Nvidia

GeForce GTX 780

3072 Mb GDDR5 Released 23 May 2013 DESKTOP
GeForce GTX 780

Core configuration

GPUGK110
ArchitectureNvidia_Kepler
Shaders : TMUs : ROPs2304 : 192 : 48
Raytracing Coresnone
Performance3977.00 GFLOPs

Memory configuration

Memory Size3072 Mb
Memory Bus Width384 bit
Memory Speed1502 MHz
6008 MHz effective
Memory Bandwidth288.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX 780 is a graphics card released by Nvidia on 23 May 2013. The graphics card houses the GK110 die, based on the Nvidia_Kepler architecture which packs 7,080 million transistors on a 28 nm, 561 mm² die.

GeForce GTX 780 pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Based on an outdated architecture (Nvidia Kepler), there are less performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX 780 GeForce GTX 780 GeForce GTX 1650 GeForce GTX 1650 Compare GeForce GTX 1050 Ti GeForce GTX 1050 Ti Compare GeForce GTX 1050 GeForce GTX 1050 Compare Radeon RX 470 Radeon RX 470 Compare
Shader units 2304 896 768 640 2048
ROPs 48 32 32 32 32
Graphics processor GK110 TU107 GP107 GP107 Ellesmere
Process size 28 nm 12 nm 14 nm 14 nm 14 nm
Memory 3072 Mb GDDR5 (1502 MHz
6008 MHz effective)		 4096 Mb GDDR5 (2000 MHz
8000 MHz effective)		 4096 Mb GDDR5 (1752 MHz
7008 MHz effective)		 2048 Mb GDDR5 (1752 MHz
7008 MHz effective)		 4096 Mb GDDR5 (1650 MHz
6600 MHz effective)
Memory bus width 384 bit 128 bit 128 bit 128 bit 256 bit
Memory bandwidth 288.00 Gb/s 128.00 Gb/s 112.10 Gb/s 112.10 Gb/s 211.20 Gb/s
Release date 23 May 2013 30 Apr 2019 25 Oct 2016 25 Oct 2016 29 Jun 2016

Benchmarks

Grand Theft Auto V

  • GeForce GTX 1650 77
  • Radeon RX 470 76
  • GeForce GTX 780 68
  • GeForce GTX 1050 Ti 65
  • GeForce GTX 1050 58

FPS (higher is better)

Grand Theft Auto V

  • Radeon RX 470 51
  • GeForce GTX 1650 49
  • GeForce GTX 780 47
  • GeForce GTX 1050 Ti 43
  • GeForce GTX 1050 39

FPS (higher is better)

Grand Theft Auto V

  • Radeon RX 470 25
  • GeForce GTX 780 24

FPS (higher is better)

Thief 2014

  • Radeon RX 470 68
  • GeForce GTX 780 57

FPS (higher is better)

Thief 2014

  • Radeon RX 470 50
  • GeForce GTX 780 43

FPS (higher is better)

Thief 2014

  • GeForce GTX 780 23

FPS (higher is better)

The Witcher 3: Wild Hunt

  • GeForce GTX 1650 51
  • Radeon RX 470 49
  • GeForce GTX 780 39
  • GeForce GTX 1050 Ti 38
  • GeForce GTX 1050 33

FPS (higher is better)

The Witcher 3: Wild Hunt

  • Radeon RX 470 36
  • GeForce GTX 1650 35
  • GeForce GTX 780 29
  • GeForce GTX 1050 Ti 29
  • GeForce GTX 1050 25

FPS (higher is better)

The Witcher 3: Wild Hunt

  • Radeon RX 470 22
  • GeForce GTX 780 19
  • GeForce GTX 1050 Ti 11

FPS (higher is better)

Battlefield Hardline

  • Radeon RX 470 53
  • GeForce GTX 780 52

FPS (higher is better)

Battlefield Hardline

  • GeForce GTX 780 36
  • Radeon RX 470 36

FPS (higher is better)
