Graphics card overview

Radeon RX Vega 64

AMD

Radeon RX Vega 64

8192 Mb HBM2 Released 8 Aug 2017 DESKTOP
Radeon RX Vega 64

Core configuration

GPUVega 10
Architecture105
Shaders : TMUs : ROPs4096 : 256 : 64
Raytracing Coresnone
Performance12288.00 GFLOPs

Memory configuration

Memory Size8192 Mb
Memory Bus Width2048 bit
Memory Speed945 MHz
1890 MHz effective
Memory Bandwidth483.80 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

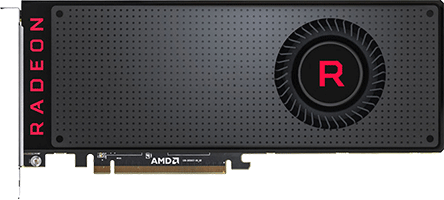

The Radeon RX Vega 64 is a graphics card released by AMD on 8 Aug 2017. The graphics card houses the Vega 10 die, based on the 105 architecture which packs 12,500 million transistors on a 14 nm, 484 mm² die.

Radeon RX Vega 64 pros and cons

  • Supports Direct3D 12 Async Compute
  • Supports FreeSync
  • Supports ReLive (allows game streaming/recording with minimum performance penalty)
  • Supports TrueAudio
  • Based on an outdated architecture (AMD GCN), there may be no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
Radeon RX Vega 64 Radeon RX Vega 64 GeForce RTX 3050 8 GB GeForce RTX 3050 8 GB Compare Radeon RX 6600 Radeon RX 6600 Compare GeForce RTX 2060 Super GeForce RTX 2060 Super Compare Radeon RX 5700 Radeon RX 5700 Compare
Shader units 4096 2560 1792 2176 2304
ROPs 64 48 64 64 64
Graphics processor Vega 10 GA106 Navi 23 TU106 Navi 10
Process size 14 nm 8 nm 7 nm 12 nm 7 nm
Memory 8192 Mb HBM2 (945 MHz
1890 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)
Memory bus width 2048 bit 128 bit 128 bit 256 bit 256 bit
Memory bandwidth 483.80 Gb/s 224.00 Gb/s 224.00 Gb/s 448.00 Gb/s 448.00 Gb/s
Release date 8 Aug 2017 4 Jan 2022 13 Oct 2021 9 Jul 2019 7 Jul 2019

Benchmarks

Hitman III

  • Radeon RX 5700 167
  • Radeon RX 6600 148
  • GeForce RTX 2060 Super 145
  • Radeon RX Vega 64 142
  • GeForce RTX 3050 8 GB 123

FPS (higher is better)

Hitman III

  • Radeon RX 5700 116
  • GeForce RTX 2060 Super 99
  • Radeon RX 6600 96
  • Radeon RX Vega 64 94
  • GeForce RTX 3050 8 GB 80

FPS (higher is better)

Hitman III

  • Radeon RX 5700 61
  • GeForce RTX 2060 Super 57
  • Radeon RX Vega 64 51
  • Radeon RX 6600 48
  • GeForce RTX 3050 8 GB 41

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 5700 74
  • Radeon RX 6600 69
  • Radeon RX Vega 64 60
  • GeForce RTX 3050 8 GB 56
  • GeForce RTX 2060 Super 50

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 5700 56
  • Radeon RX 6600 50
  • Radeon RX Vega 64 48
  • GeForce RTX 3050 8 GB 43

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 5700 30
  • Radeon RX Vega 64 29
  • Radeon RX 6600 27
  • GeForce RTX 3050 8 GB 26

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 5700 106
  • Radeon RX 6600 105
  • GeForce RTX 2060 Super 105
  • GeForce RTX 3050 8 GB 90
  • Radeon RX Vega 64 90

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2060 Super 71
  • Radeon RX 5700 70
  • Radeon RX 6600 68
  • Radeon RX Vega 64 61
  • GeForce RTX 3050 8 GB 60

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2060 Super 37
  • Radeon RX 5700 35
  • Radeon RX 6600 33
  • GeForce RTX 3050 8 GB 31
  • Radeon RX Vega 64 31

FPS (higher is better)

Far Cry 6

  • Radeon RX 5700 102
  • GeForce RTX 2060 Super 88
  • Radeon RX Vega 64 82
  • GeForce RTX 3050 8 GB 71

FPS (higher is better)

Far Cry 6

  • Radeon RX 5700 69
  • GeForce RTX 2060 Super 66
  • Radeon RX Vega 64 61
  • GeForce RTX 3050 8 GB 51

FPS (higher is better)

Far Cry 6

  • Radeon RX 5700 39
  • GeForce RTX 2060 Super 37
  • Radeon RX Vega 64 35
  • GeForce RTX 3050 8 GB 6

FPS (higher is better)
