Graphics card overview

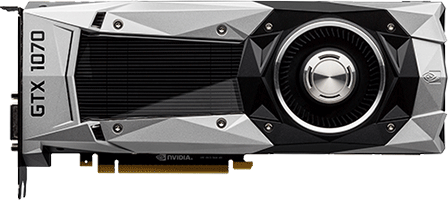

GeForce GTX 1070

Nvidia

GeForce GTX 1070

8192 Mb GDDR5 Released 10 Jun 2016 DESKTOP
GeForce GTX 1070

Core configuration

GPUGP104
ArchitectureNvidia_Pascal
Shaders : TMUs : ROPs1920 : 120 : 64
Raytracing Coresnone
Performance5783.00 GFLOPs

Memory configuration

Memory Size8192 Mb
Memory Bus Width256 bit
Memory Speed2002 MHz
8008 MHz effective
Memory Bandwidth256.30 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX 1070 is a graphics card released by Nvidia on 10 Jun 2016. The graphics card houses the GP104 die, based on the Nvidia_Pascal architecture which packs 7,200 million transistors on a 16 nm, 314 mm² die.

GeForce GTX 1070 pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Based on an outdated architecture (Nvidia Pascal), there may be no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX 1070 GeForce GTX 1070 GeForce RTX 3050 8 GB GeForce RTX 3050 8 GB Compare Radeon RX 5500 XT Radeon RX 5500 XT Compare GeForce GTX 1650 SUPER GeForce GTX 1650 SUPER Compare GeForce GTX 1660 SUPER GeForce GTX 1660 SUPER Compare
Shader units 1920 2560 1408 1280 1408
ROPs 64 48 32 32 48
Graphics processor GP104 GA106 Navi 14 TU116 TU116
Process size 16 nm 8 nm 7 nm 12 nm 12 nm
Memory 8192 Mb GDDR5 (2002 MHz
8008 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 4096 Mb GDDR6 (1750 MHz
14000 MHz effective)		 4096 Mb GDDR6 (1500 MHz
12000 MHz effective)		 6144 Mb GDDR6 (1750 MHz
14000 MHz effective)
Memory bus width 256 bit 128 bit 128 bit 128 bit 192 bit
Memory bandwidth 256.30 Gb/s 224.00 Gb/s 224.00 Gb/s 192.00 Gb/s 336.00 Gb/s
Release date 10 Jun 2016 4 Jan 2022 12 Dec 2019 22 Nov 2019 29 Oct 2019

Benchmarks

Hitman III

  • GeForce RTX 3050 8 GB 123
  • GeForce GTX 1650 SUPER 104
  • GeForce GTX 1070 103

FPS (higher is better)

Hitman III

  • GeForce RTX 3050 8 GB 80
  • GeForce GTX 1650 SUPER 66
  • GeForce GTX 1070 65

FPS (higher is better)

Hitman III

  • GeForce RTX 3050 8 GB 41
  • GeForce GTX 1070 35
  • GeForce GTX 1660 SUPER 34

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 3050 8 GB 56
  • GeForce GTX 1070 43
  • GeForce GTX 1660 SUPER 43

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 3050 8 GB 43
  • GeForce GTX 1070 34
  • GeForce GTX 1660 SUPER 34
  • Radeon RX 5500 XT 31

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 3050 8 GB 26
  • GeForce GTX 1070 21
  • Radeon RX 5500 XT 17
  • GeForce GTX 1660 SUPER 12

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 3050 8 GB 90
  • GeForce GTX 1660 SUPER 80
  • GeForce GTX 1070 74
  • Radeon RX 5500 XT 66
  • GeForce GTX 1650 SUPER 66

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 3050 8 GB 60
  • GeForce GTX 1660 SUPER 51
  • GeForce GTX 1070 49
  • Radeon RX 5500 XT 43
  • GeForce GTX 1650 SUPER 42

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 3050 8 GB 31
  • GeForce GTX 1660 SUPER 25
  • GeForce GTX 1070 25
  • Radeon RX 5500 XT 22
  • GeForce GTX 1650 SUPER 18

FPS (higher is better)

Far Cry 6

  • GeForce GTX 1660 SUPER 72
  • GeForce RTX 3050 8 GB 71
  • Radeon RX 5500 XT 60
  • GeForce GTX 1650 SUPER 59
  • GeForce GTX 1070 55

FPS (higher is better)

Far Cry 6

  • GeForce RTX 3050 8 GB 51
  • GeForce GTX 1660 SUPER 51
  • GeForce GTX 1650 SUPER 42
  • Radeon RX 5500 XT 39
  • GeForce GTX 1070 37

FPS (higher is better)

Far Cry 6

  • GeForce GTX 1070 26
  • GeForce GTX 1660 SUPER 25
  • Radeon RX 5500 XT 18
  • GeForce GTX 1650 SUPER 17
  • GeForce RTX 3050 8 GB 6

FPS (higher is better)
