Graphics card overview

Geforce GTX TITAN Xp

Nvidia

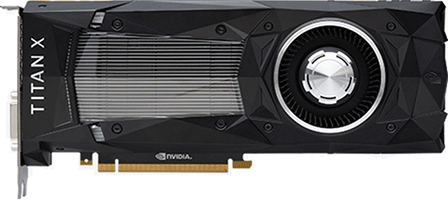

Geforce GTX TITAN Xp

12288 Mb GDDR5X Released 6 Apr 2017 DESKTOP
Geforce GTX TITAN Xp

Core configuration

GPUGP102
ArchitectureNvidia_Pascal
Shaders : TMUs : ROPs3840 : 240 : 96
Raytracing Coresnone
Performance11366.00 GFLOPs

Memory configuration

Memory Size12288 Mb
Memory Bus Width384 bit
Memory Speed1426 MHz
11408 MHz effective
Memory Bandwidth548.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The Geforce GTX TITAN Xp is a graphics card released by Nvidia on 6 Apr 2017. The graphics card houses the GP102 die, based on the Nvidia_Pascal architecture which packs 12,000 million transistors on a 16 nm, 471 mm² die.

Geforce GTX TITAN Xp pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Based on an outdated architecture (Nvidia Pascal), there may be no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
Geforce GTX TITAN Xp Geforce GTX TITAN Xp Radeon RX 7600 Radeon RX 7600 Compare Radeon RX 6650 XT Radeon RX 6650 XT Compare Radeon RX 6600 XT Radeon RX 6600 XT Compare GeForce RTX 2080 Super GeForce RTX 2080 Super Compare
Shader units 3840 2048 2048 2048 3072
ROPs 96 64 64 64 64
Graphics processor GP102 Navi 33 Navi 23 Navi 23 TU104
Process size 16 nm 6 nm 7 nm 7 nm 12 nm
Memory 12288 Mb GDDR5X (1426 MHz
11408 MHz effective)		 8192 Mb GDDR6 (2250 MHz
18 Gbps effective)		 8192 Mb GDDR6 (2190 MHz
17.5 Gbps effective)		 8192 Mb GDDR6 (2000 MHz
16 Gbps effective)		 8192 Mb GDDR6 (1940 MHz
15520 MHz effective)
Memory bus width 384 bit 128 bit 128 bit 128 bit 256 bit
Memory bandwidth 548.00 Gb/s 288.00 Gb/s 280.30 Gb/s 256.00 Gb/s 496.60 Gb/s
Release date 6 Apr 2017 24 May 2023 10 May 2022 30 Jul 2021 23 Jul 2019

Benchmarks

Shadow of the Tomb Raider

  • Radeon RX 7600 140
  • Radeon RX 6650 XT 138
  • Radeon RX 6600 XT 126
  • GeForce RTX 2080 Super 123
  • Geforce GTX TITAN Xp 123

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2080 Super 94
  • Radeon RX 7600 90
  • Radeon RX 6650 XT 88
  • Geforce GTX TITAN Xp 85
  • Radeon RX 6600 XT 82

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2080 Super 50
  • Geforce GTX TITAN Xp 46
  • Radeon RX 7600 42
  • Radeon RX 6650 XT 42
  • Radeon RX 6600 XT 40

FPS (higher is better)

Far Cry 6

  • Radeon RX 6650 XT 111
  • GeForce RTX 2080 Super 109
  • Radeon RX 6600 XT 109
  • Radeon RX 7600 104
  • Geforce GTX TITAN Xp 91

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2080 Super 83
  • Radeon RX 6650 XT 80
  • Radeon RX 7600 72
  • Radeon RX 6600 XT 72
  • Geforce GTX TITAN Xp 71

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2080 Super 53
  • Radeon RX 6650 XT 43
  • Geforce GTX TITAN Xp 43
  • Radeon RX 6600 XT 38
  • Radeon RX 7600 24

FPS (higher is better)
