Graphics card overview

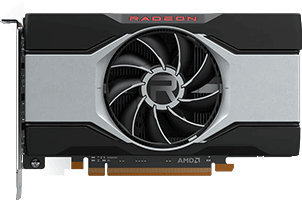

Radeon RX 6600

AMD

Radeon RX 6600

8192 Mb GDDR6 Released 13 Oct 2021 DESKTOP
Radeon RX 6600

Core configuration

GPUNavi 23
ArchitectureAMD_RDNA_2_0
Shaders : TMUs : ROPs1792 : 112 : 64
Raytracing Cores28
Performance8928.00 GFLOPs

Memory configuration

Memory Size8192 Mb
Memory Bus Width128 bit
Memory Speed1750 MHz
14 Gbps effective
Memory Bandwidth224.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The Radeon RX 6600 is a graphics card released by AMD on 13 Oct 2021. The graphics card houses the Navi 23 die, based on the AMD_RDNA_2_0 architecture which packs 11,060 million transistors on a 7 nm, 237 mm² die.

Radeon RX 6600 pros and cons

  • Supports Direct3D 12 Async Compute
  • Supports FreeSync
  • Supports ReLive (allows game streaming/recording with minimum performance penalty)
  • Infinity Cache allows to deliver up to 3.25x the effective memory bandwidth
  • Supports DirectX Raytracing (DXR)

Specifications

Compared to similar performing cards
Radeon RX 6600 Radeon RX 6600 GeForce RTX 3050 8 GB GeForce RTX 3050 8 GB Compare GeForce RTX 2070 Super GeForce RTX 2070 Super Compare GeForce RTX 2060 Super GeForce RTX 2060 Super Compare Radeon RX 5700 Radeon RX 5700 Compare
Shader units 1792 2560 2560 2176 2304
ROPs 64 48 64 64 64
Graphics processor Navi 23 GA106 TU104 TU106 Navi 10
Process size 7 nm 8 nm 12 nm 12 nm 7 nm
Memory 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)
Memory bus width 128 bit 128 bit 256 bit 256 bit 256 bit
Memory bandwidth 224.00 Gb/s 224.00 Gb/s 448.00 Gb/s 448.00 Gb/s 448.00 Gb/s
Release date 13 Oct 2021 4 Jan 2022 9 Jul 2019 9 Jul 2019 7 Jul 2019

Benchmarks

Hitman III

  • GeForce RTX 2070 Super 167
  • Radeon RX 5700 167
  • Radeon RX 6600 148
  • GeForce RTX 2060 Super 145
  • GeForce RTX 3050 8 GB 123

FPS (higher is better)

Hitman III

  • GeForce RTX 2070 Super 116
  • Radeon RX 5700 116
  • GeForce RTX 2060 Super 99
  • Radeon RX 6600 96
  • GeForce RTX 3050 8 GB 80

FPS (higher is better)

Hitman III

  • GeForce RTX 2070 Super 64
  • Radeon RX 5700 61
  • GeForce RTX 2060 Super 57
  • Radeon RX 6600 48
  • GeForce RTX 3050 8 GB 41

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 5700 74
  • Radeon RX 6600 69
  • GeForce RTX 2070 Super 64
  • GeForce RTX 3050 8 GB 56
  • GeForce RTX 2060 Super 50

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 5700 56
  • GeForce RTX 2070 Super 53
  • Radeon RX 6600 50
  • GeForce RTX 3050 8 GB 43

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 2070 Super 33
  • Radeon RX 5700 30
  • Radeon RX 6600 27
  • GeForce RTX 3050 8 GB 26

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2070 Super 122
  • Radeon RX 5700 106
  • Radeon RX 6600 105
  • GeForce RTX 2060 Super 105
  • GeForce RTX 3050 8 GB 90

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2070 Super 84
  • GeForce RTX 2060 Super 71
  • Radeon RX 5700 70
  • Radeon RX 6600 68
  • GeForce RTX 3050 8 GB 60

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2070 Super 44
  • GeForce RTX 2060 Super 37
  • Radeon RX 5700 35
  • Radeon RX 6600 33
  • GeForce RTX 3050 8 GB 31

FPS (higher is better)
