Graphics card overview

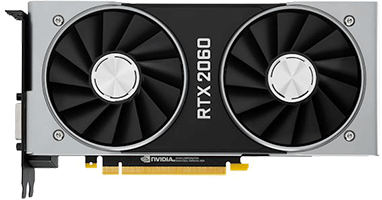

GeForce RTX 2060

Nvidia

GeForce RTX 2060

6144 Mb GDDR6 Released 15 Jan 2019 DESKTOP
GeForce RTX 2060

Core configuration

GPUTU106
ArchitectureNvidia_Turing
Shaders : TMUs : ROPs1920 : 120 : 48
Raytracing Coresnone
Performance6451.00 GFLOPs

Memory configuration

Memory Size6144 Mb
Memory Bus Width192 bit
Memory Speed1750 MHz
14000 MHz effective
Memory Bandwidth336.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce RTX 2060 is a graphics card released by Nvidia on 15 Jan 2019. The graphics card houses the TU106 die, based on the Nvidia_Turing architecture which packs 10,800 million transistors on a 12 nm, 445 mm² die.

GeForce RTX 2060 pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Supports DirectX Raytracing (DXR)
  • Supports Deep Learning Super-Sampling (DLSS)

Specifications

Compared to similar performing cards
GeForce RTX 2060 GeForce RTX 2060 GeForce RTX 3050 8 GB GeForce RTX 3050 8 GB Compare Radeon RX 6600 Radeon RX 6600 Compare GeForce GTX 1660 SUPER GeForce GTX 1660 SUPER Compare GeForce RTX 2060 Super GeForce RTX 2060 Super Compare
Shader units 1920 2560 1792 1408 2176
ROPs 48 48 64 48 64
Graphics processor TU106 GA106 Navi 23 TU116 TU106
Process size 12 nm 8 nm 7 nm 12 nm 12 nm
Memory 6144 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 6144 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)
Memory bus width 192 bit 128 bit 128 bit 192 bit 256 bit
Memory bandwidth 336.00 Gb/s 224.00 Gb/s 224.00 Gb/s 336.00 Gb/s 448.00 Gb/s
Release date 15 Jan 2019 4 Jan 2022 13 Oct 2021 29 Oct 2019 9 Jul 2019

Benchmarks

Assassins Creed: Valhalla

  • Radeon RX 6600 50
  • GeForce RTX 3050 8 GB 43
  • GeForce RTX 2060 39
  • GeForce GTX 1660 SUPER 34

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 6600 27
  • GeForce RTX 3050 8 GB 26
  • GeForce RTX 2060 24
  • GeForce GTX 1660 SUPER 12

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 6600 105
  • GeForce RTX 2060 Super 105
  • GeForce RTX 3050 8 GB 90
  • GeForce RTX 2060 86
  • GeForce GTX 1660 SUPER 80

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2060 Super 71
  • Radeon RX 6600 68
  • GeForce RTX 3050 8 GB 60
  • GeForce RTX 2060 57
  • GeForce GTX 1660 SUPER 51

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2060 Super 37
  • Radeon RX 6600 33
  • GeForce RTX 3050 8 GB 31
  • GeForce RTX 2060 29
  • GeForce GTX 1660 SUPER 25

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2060 Super 88
  • GeForce RTX 2060 81
  • GeForce GTX 1660 SUPER 72
  • GeForce RTX 3050 8 GB 71

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2060 Super 66
  • GeForce RTX 2060 57
  • GeForce RTX 3050 8 GB 51
  • GeForce GTX 1660 SUPER 51

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2060 Super 37
  • GeForce RTX 2060 34
  • GeForce GTX 1660 SUPER 25
  • GeForce RTX 3050 8 GB 6

FPS (higher is better)
