Graphics card overview

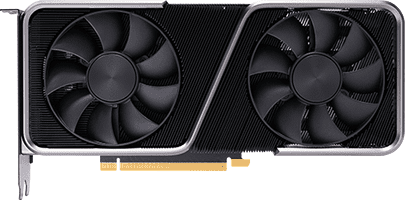

GeForce RTX 3060

Nvidia

GeForce RTX 3060

12288 Mb GDDR6 Released UNRELEASED DESKTOP
GeForce RTX 3060

Core configuration

GPUGA106
ArchitectureNvidia_Ampere
Shaders : TMUs : ROPs3840 : 120 : 64
Raytracing Coresnone
Performance14220.00 GFLOPs

Memory configuration

Memory Size12288 Mb
Memory Bus Width192 bit
Memory Speed1750 MHz
14 Gbps effective
Memory Bandwidth336.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce RTX 3060 is a graphics card not yet released. Performance and specifications shown in this page is subject to change upon release.

GeForce RTX 3060 pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Supports DirectX Raytracing (DXR)
  • Supports Deep Learning Super-Sampling (DLSS)

Specifications

Compared to similar performing cards
GeForce RTX 3060 GeForce RTX 3060 Radeon RX 7600 Radeon RX 7600 Compare Radeon RX 6650 XT Radeon RX 6650 XT Compare Radeon RX 6600 Radeon RX 6600 Compare Radeon RX 6600 XT Radeon RX 6600 XT Compare
Shader units 3840 2048 2048 1792 2048
ROPs 64 64 64 64 64
Graphics processor GA106 Navi 33 Navi 23 Navi 23 Navi 23
Process size 8 nm 6 nm 7 nm 7 nm 7 nm
Memory 12288 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (2250 MHz
18 Gbps effective)		 8192 Mb GDDR6 (2190 MHz
17.5 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (2000 MHz
16 Gbps effective)
Memory bus width 192 bit 128 bit 128 bit 128 bit 128 bit
Memory bandwidth 336.00 Gb/s 288.00 Gb/s 280.30 Gb/s 224.00 Gb/s 256.00 Gb/s
Release date 1 Jan 1800 24 May 2023 10 May 2022 13 Oct 2021 30 Jul 2021

Benchmarks

Hitman III

  • Radeon RX 6650 XT 198
  • Radeon RX 7600 191
  • Radeon RX 6600 XT 177
  • GeForce RTX 3060 158
  • Radeon RX 6600 148

FPS (higher is better)

Hitman III

  • Radeon RX 6650 XT 127
  • Radeon RX 7600 121
  • Radeon RX 6600 XT 115
  • GeForce RTX 3060 105
  • Radeon RX 6600 96

FPS (higher is better)

Hitman III

  • Radeon RX 6650 XT 64
  • Radeon RX 7600 62
  • Radeon RX 6600 XT 57
  • GeForce RTX 3060 56
  • Radeon RX 6600 48

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 124
  • Radeon RX 6650 XT 94
  • Radeon RX 6600 XT 86
  • Radeon RX 6600 69
  • GeForce RTX 3060 68

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 85
  • Radeon RX 6650 XT 66
  • Radeon RX 6600 XT 59
  • GeForce RTX 3060 54
  • Radeon RX 6600 50

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 47
  • Radeon RX 6650 XT 36
  • GeForce RTX 3060 34
  • Radeon RX 6600 XT 33
  • Radeon RX 6600 27

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 7600 140
  • Radeon RX 6650 XT 138
  • Radeon RX 6600 XT 126
  • GeForce RTX 3060 123
  • Radeon RX 6600 105

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 7600 90
  • Radeon RX 6650 XT 88
  • Radeon RX 6600 XT 82
  • GeForce RTX 3060 82
  • Radeon RX 6600 68

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 3060 44
  • Radeon RX 7600 42
  • Radeon RX 6650 XT 42
  • Radeon RX 6600 XT 40
  • Radeon RX 6600 33

FPS (higher is better)

Far Cry 6

  • Radeon RX 6650 XT 111
  • Radeon RX 6600 XT 109
  • Radeon RX 7600 104
  • GeForce RTX 3060 101

FPS (higher is better)

Far Cry 6

  • Radeon RX 6650 XT 80
  • Radeon RX 7600 72
  • Radeon RX 6600 XT 72
  • GeForce RTX 3060 69

FPS (higher is better)

Far Cry 6

  • Radeon RX 6650 XT 43
  • GeForce RTX 3060 39
  • Radeon RX 6600 XT 38
  • Radeon RX 7600 24

FPS (higher is better)
