Graphics card overview

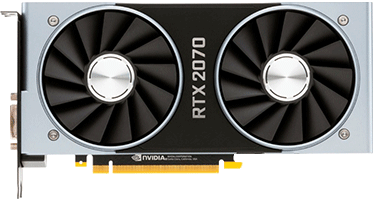

GeForce RTX 2070

Nvidia

GeForce RTX 2070

8192 Mb GDDR6 Released UNRELEASED DESKTOP
GeForce RTX 2070

Core configuration

GPUTU104
ArchitectureNvidia_Turing
Shaders : TMUs : ROPs2432 : 152 : 64
Raytracing Coresnone
Performance8279.00 GFLOPs

Memory configuration

Memory Size8192 Mb
Memory Bus Width256 bit
Memory Speed1750 MHz
14000 MHz effective
Memory Bandwidth448.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce RTX 2070 is a graphics card not yet released. Performance and specifications shown in this page is subject to change upon release.

GeForce RTX 2070 pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Supports DirectX Raytracing (DXR)
  • Supports Deep Learning Super-Sampling (DLSS)

Specifications

Compared to similar performing cards
GeForce RTX 2070 GeForce RTX 2070 Radeon RX 6600 Radeon RX 6600 Compare Radeon RX 6600 XT Radeon RX 6600 XT Compare GeForce RTX 2070 Super GeForce RTX 2070 Super Compare GeForce RTX 2060 Super GeForce RTX 2060 Super Compare
Shader units 2432 1792 2048 2560 2176
ROPs 64 64 64 64 64
Graphics processor TU104 Navi 23 Navi 23 TU104 TU106
Process size 12 nm 7 nm 7 nm 12 nm 12 nm
Memory 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (2000 MHz
16 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)
Memory bus width 256 bit 128 bit 128 bit 256 bit 256 bit
Memory bandwidth 448.00 Gb/s 224.00 Gb/s 256.00 Gb/s 448.00 Gb/s 448.00 Gb/s
Release date 1 Jan 1800 13 Oct 2021 30 Jul 2021 9 Jul 2019 9 Jul 2019

Benchmarks

Hitman III

  • Radeon RX 6600 XT 177
  • GeForce RTX 2070 Super 167
  • GeForce RTX 2070 150
  • Radeon RX 6600 148
  • GeForce RTX 2060 Super 145

FPS (higher is better)

Hitman III

  • GeForce RTX 2070 Super 116
  • Radeon RX 6600 XT 115
  • GeForce RTX 2070 102
  • GeForce RTX 2060 Super 99
  • Radeon RX 6600 96

FPS (higher is better)

Hitman III

  • GeForce RTX 2070 Super 64
  • GeForce RTX 2070 60
  • Radeon RX 6600 XT 57
  • GeForce RTX 2060 Super 57
  • Radeon RX 6600 48

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 6600 XT 86
  • Radeon RX 6600 69
  • GeForce RTX 2070 Super 64
  • GeForce RTX 2070 56
  • GeForce RTX 2060 Super 50

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 6600 XT 59
  • GeForce RTX 2070 Super 53
  • Radeon RX 6600 50
  • GeForce RTX 2070 45

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 2070 Super 33
  • Radeon RX 6600 XT 33
  • GeForce RTX 2070 30
  • Radeon RX 6600 27

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 6600 XT 126
  • GeForce RTX 2070 Super 122
  • Radeon RX 6600 105
  • GeForce RTX 2060 Super 105
  • GeForce RTX 2070 95

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2070 Super 84
  • Radeon RX 6600 XT 82
  • GeForce RTX 2060 Super 71
  • Radeon RX 6600 68
  • GeForce RTX 2070 66

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2070 Super 44
  • Radeon RX 6600 XT 40
  • GeForce RTX 2060 Super 37
  • GeForce RTX 2070 35
  • Radeon RX 6600 33

FPS (higher is better)

Far Cry 6

  • Radeon RX 6600 XT 109
  • GeForce RTX 2070 Super 108
  • GeForce RTX 2070 103
  • GeForce RTX 2060 Super 88

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2070 Super 76
  • Radeon RX 6600 XT 72
  • GeForce RTX 2070 67
  • GeForce RTX 2060 Super 66

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2070 Super 44
  • GeForce RTX 2070 40
  • Radeon RX 6600 XT 38
  • GeForce RTX 2060 Super 37

FPS (higher is better)
