Graphics card overview

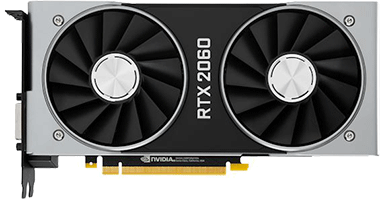

GeForce RTX 2060 Super

Nvidia

GeForce RTX 2060 Super

8192 Mb GDDR6 Released 9 Jul 2019 DESKTOP
GeForce RTX 2060 Super

Core configuration

GPUTU106
ArchitectureNvidia_Turing
Shaders : TMUs : ROPs2176 : 136 : 64
Raytracing Coresnone
Performance7181.00 GFLOPs

Memory configuration

Memory Size8192 Mb
Memory Bus Width256 bit
Memory Speed1750 MHz
14000 MHz effective
Memory Bandwidth448.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce RTX 2060 Super is a graphics card released by Nvidia on 9 Jul 2019. The graphics card houses the TU106 die, based on the Nvidia_Turing architecture which packs 10,800 million transistors on a 12 nm, 445 mm² die.

GeForce RTX 2060 Super pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Supports DirectX Raytracing (DXR)
  • Supports Deep Learning Super-Sampling (DLSS)

Specifications

Compared to similar performing cards
GeForce RTX 2060 Super GeForce RTX 2060 Super Radeon RX 6600 Radeon RX 6600 Compare Radeon RX 6600 XT Radeon RX 6600 XT Compare GeForce RTX 2070 Super GeForce RTX 2070 Super Compare Radeon RX 5700 Radeon RX 5700 Compare
Shader units 2176 1792 2048 2560 2304
ROPs 64 64 64 64 64
Graphics processor TU106 Navi 23 Navi 23 TU104 Navi 10
Process size 12 nm 7 nm 7 nm 12 nm 7 nm
Memory 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (2000 MHz
16 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)
Memory bus width 256 bit 128 bit 128 bit 256 bit 256 bit
Memory bandwidth 448.00 Gb/s 224.00 Gb/s 256.00 Gb/s 448.00 Gb/s 448.00 Gb/s
Release date 9 Jul 2019 13 Oct 2021 30 Jul 2021 9 Jul 2019 7 Jul 2019

Benchmarks

Hitman III

  • Radeon RX 6600 XT 177
  • GeForce RTX 2070 Super 167
  • Radeon RX 5700 167
  • Radeon RX 6600 148
  • GeForce RTX 2060 Super 145

FPS (higher is better)

Hitman III

  • GeForce RTX 2070 Super 116
  • Radeon RX 5700 116
  • Radeon RX 6600 XT 115
  • GeForce RTX 2060 Super 99
  • Radeon RX 6600 96

FPS (higher is better)

Hitman III

  • GeForce RTX 2070 Super 64
  • Radeon RX 5700 61
  • Radeon RX 6600 XT 57
  • GeForce RTX 2060 Super 57
  • Radeon RX 6600 48

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 6600 XT 86
  • Radeon RX 5700 74
  • Radeon RX 6600 69
  • GeForce RTX 2070 Super 64
  • GeForce RTX 2060 Super 50

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 6600 XT 126
  • GeForce RTX 2070 Super 122
  • Radeon RX 5700 106
  • Radeon RX 6600 105
  • GeForce RTX 2060 Super 105

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2070 Super 84
  • Radeon RX 6600 XT 82
  • GeForce RTX 2060 Super 71
  • Radeon RX 5700 70
  • Radeon RX 6600 68

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2070 Super 44
  • Radeon RX 6600 XT 40
  • GeForce RTX 2060 Super 37
  • Radeon RX 5700 35
  • Radeon RX 6600 33

FPS (higher is better)

Far Cry 6

  • Radeon RX 6600 XT 109
  • GeForce RTX 2070 Super 108
  • Radeon RX 5700 102
  • GeForce RTX 2060 Super 88

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2070 Super 76
  • Radeon RX 6600 XT 72
  • Radeon RX 5700 69
  • GeForce RTX 2060 Super 66

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2070 Super 44
  • Radeon RX 5700 39
  • Radeon RX 6600 XT 38
  • GeForce RTX 2060 Super 37

FPS (higher is better)
