Graphics card overview

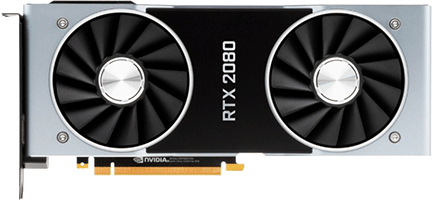

GeForce RTX 2080

Nvidia

GeForce RTX 2080

8192 Mb GDDR6 Released 20 Aug 2018 DESKTOP
GeForce RTX 2080

Core configuration

GPUTU104
ArchitectureNvidia_Turing
Shaders : TMUs : ROPs2944 : 184 : 64
Raytracing Coresnone
Performance9833.00 GFLOPs

Memory configuration

Memory Size8192 Mb
Memory Bus Width256 bit
Memory Speed1750 MHz
14000 MHz effective
Memory Bandwidth448.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce RTX 2080 is a graphics card released by Nvidia on 20 Aug 2018. The graphics card houses the TU104 die, based on the Nvidia_Turing architecture which packs unknown transistors on a 12 nm, 0 mm² die.

GeForce RTX 2080 pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Supports DirectX Raytracing (DXR)
  • Supports Deep Learning Super-Sampling (DLSS)

Specifications

Compared to similar performing cards
GeForce RTX 2080 GeForce RTX 2080 Radeon RX 7600 Radeon RX 7600 Compare Radeon RX 6650 XT Radeon RX 6650 XT Compare Radeon RX 6600 Radeon RX 6600 Compare Radeon RX 6600 XT Radeon RX 6600 XT Compare
Shader units 2944 2048 2048 1792 2048
ROPs 64 64 64 64 64
Graphics processor TU104 Navi 33 Navi 23 Navi 23 Navi 23
Process size 12 nm 6 nm 7 nm 7 nm 7 nm
Memory 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (2250 MHz
18 Gbps effective)		 8192 Mb GDDR6 (2190 MHz
17.5 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (2000 MHz
16 Gbps effective)
Memory bus width 256 bit 128 bit 128 bit 128 bit 128 bit
Memory bandwidth 448.00 Gb/s 288.00 Gb/s 280.30 Gb/s 224.00 Gb/s 256.00 Gb/s
Release date 20 Aug 2018 24 May 2023 10 May 2022 13 Oct 2021 30 Jul 2021

Benchmarks

Hitman III

  • Radeon RX 6650 XT 198
  • Radeon RX 7600 191
  • Radeon RX 6600 XT 177
  • GeForce RTX 2080 174
  • Radeon RX 6600 148

FPS (higher is better)

Hitman III

  • Radeon RX 6650 XT 127
  • GeForce RTX 2080 125
  • Radeon RX 7600 121
  • Radeon RX 6600 XT 115
  • Radeon RX 6600 96

FPS (higher is better)

Hitman III

  • GeForce RTX 2080 70
  • Radeon RX 6650 XT 64
  • Radeon RX 7600 62
  • Radeon RX 6600 XT 57
  • Radeon RX 6600 48

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 124
  • Radeon RX 6650 XT 94
  • Radeon RX 6600 XT 86
  • Radeon RX 6600 69
  • GeForce RTX 2080 66

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 85
  • Radeon RX 6650 XT 66
  • Radeon RX 6600 XT 59
  • GeForce RTX 2080 57
  • Radeon RX 6600 50

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 47
  • Radeon RX 6650 XT 36
  • GeForce RTX 2080 36
  • Radeon RX 6600 XT 33
  • Radeon RX 6600 27

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 7600 140
  • Radeon RX 6650 XT 138
  • Radeon RX 6600 XT 126
  • GeForce RTX 2080 121
  • Radeon RX 6600 105

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 7600 90
  • Radeon RX 6650 XT 88
  • GeForce RTX 2080 84
  • Radeon RX 6600 XT 82
  • Radeon RX 6600 68

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2080 46
  • Radeon RX 7600 42
  • Radeon RX 6650 XT 42
  • Radeon RX 6600 XT 40
  • Radeon RX 6600 33

FPS (higher is better)

Far Cry 6

  • Radeon RX 6650 XT 111
  • Radeon RX 6600 XT 109
  • GeForce RTX 2080 108
  • Radeon RX 7600 104

FPS (higher is better)

Far Cry 6

  • Radeon RX 6650 XT 80
  • GeForce RTX 2080 79
  • Radeon RX 7600 72
  • Radeon RX 6600 XT 72

FPS (higher is better)

Far Cry 6

  • GeForce RTX 2080 47
  • Radeon RX 6650 XT 43
  • Radeon RX 6600 XT 38
  • Radeon RX 7600 24

FPS (higher is better)
