Graphics card overview

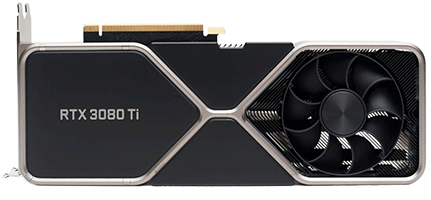

GeForce RTX 3080 Ti

Nvidia

GeForce RTX 3080 Ti

12288 Mb GDDR6X Released 31 May 2021 DESKTOP

Core configuration

GPU	GA102
Architecture	Nvidia_Ampere
Shaders : TMUs : ROPs	10240 : 320 : 112
Tensor Cores	320
Raytracing Cores	80
Performance	34100.00 GFLOPs

Memory configuration

Memory Size	12288 Mb
Memory Bus Width	384 bit
Memory Speed	1188 MHz 19 Gbps effective
Memory Bandwidth	912.40 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce RTX 3080 Ti is a graphics card released by Nvidia on 31 May 2021. The graphics card houses the GA102 die, based on the Nvidia_Ampere architecture which packs 28,300 million transistors on a 8 nm, 628 mm² die.

GeForce RTX 3080 Ti pros and cons

Supports PhysX
Supports G-Sync
Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
Supports Direct3D 12 Async Compute
Supports DirectX Raytracing (DXR)
Supports Deep Learning Super-Sampling (DLSS)

Specifications

Compared to similar performing cards

	GeForce RTX 3080 Ti	Radeon RX 6750 XT Compare	GeForce RTX 3090 Ti Compare	GeForce RTX 3080 12 GB Compare	Radeon RX 6900 XT Compare
Shader units	10240	2560	10752	8960	5120
ROPs	112	64	112	96	128
Graphics processor	GA102	Navi 22	GA102	GA102	Navi 21
Process size	8 nm	7 nm	8 nm	8 nm	7 nm
Memory	12288 Mb GDDR6X (1188 MHz 19 Gbps effective)	12288 Mb GDDR6 (2250 MHz 18 Gbps effective)	24576 Mb GDDR6X (1313 MHz 21 Gbps effective)	12288 Mb GDDR6X (1188 MHz 19 Gbps effective)	16384 Mb GDDR6 (2000 MHz 16 Gbps effective)
Memory bus width	384 bit	192 bit	384 bit	384 bit	256 bit
Memory bandwidth	912.40 Gb/s	432.00 Gb/s	1008.00 Gb/s	912.40 Gb/s	512.00 Gb/s
Release date	31 May 2021	3 Mar 2022	27 Jan 2022	11 Jan 2022	28 Oct 2020

Benchmarks

Hitman III

GeForce RTX 3090 Ti 333
Radeon RX 6900 XT 281
Radeon RX 6750 XT 264
GeForce RTX 3080 12 GB 258
GeForce RTX 3080 Ti 249

FPS (higher is better)

Hitman III

GeForce RTX 3090 Ti 236
Radeon RX 6900 XT 217
GeForce RTX 3080 12 GB 214
GeForce RTX 3080 Ti 211
Radeon RX 6750 XT 170

FPS (higher is better)

Hitman III

GeForce RTX 3090 Ti 142
Radeon RX 6900 XT 126
GeForce RTX 3080 Ti 125
GeForce RTX 3080 12 GB 118
Radeon RX 6750 XT 88

FPS (higher is better)

Assassins Creed: Valhalla

Radeon RX 6900 XT 192
Radeon RX 6750 XT 140
GeForce RTX 3090 Ti 133
GeForce RTX 3080 12 GB 127
GeForce RTX 3080 Ti 118

FPS (higher is better)

Assassins Creed: Valhalla

Radeon RX 6900 XT 118
GeForce RTX 3090 Ti 112
GeForce RTX 3080 12 GB 110
GeForce RTX 3080 Ti 102
Radeon RX 6750 XT 97

FPS (higher is better)

Assassins Creed: Valhalla

GeForce RTX 3090 Ti 72
Radeon RX 6900 XT 70
GeForce RTX 3080 12 GB 67
GeForce RTX 3080 Ti 64
Radeon RX 6750 XT 51

FPS (higher is better)

Shadow of the Tomb Raider

GeForce RTX 3090 Ti 276
Radeon RX 6900 XT 239
GeForce RTX 3080 12 GB 232
Radeon RX 6750 XT 226
GeForce RTX 3080 Ti 223

FPS (higher is better)

Shadow of the Tomb Raider

GeForce RTX 3090 Ti 208
Radeon RX 6900 XT 178
GeForce RTX 3080 12 GB 175
GeForce RTX 3080 Ti 161
Radeon RX 6750 XT 125

FPS (higher is better)

Shadow of the Tomb Raider

GeForce RTX 3090 Ti 114
GeForce RTX 3080 Ti 96
GeForce RTX 3080 12 GB 95
Radeon RX 6900 XT 88
Radeon RX 6750 XT 62

FPS (higher is better)

Far Cry 6

GeForce RTX 3090 Ti 175
Radeon RX 6900 XT 139
Radeon RX 6750 XT 131
GeForce RTX 3080 12 GB 128
GeForce RTX 3080 Ti 120

FPS (higher is better)

Far Cry 6

GeForce RTX 3090 Ti 144
GeForce RTX 3080 Ti 137
Radeon RX 6900 XT 122
GeForce RTX 3080 12 GB 120
Radeon RX 6750 XT 106

FPS (higher is better)

Far Cry 6

GeForce RTX 3090 Ti 89
Radeon RX 6900 XT 81
GeForce RTX 3080 12 GB 79
GeForce RTX 3080 Ti 78
Radeon RX 6750 XT 56

FPS (higher is better)
