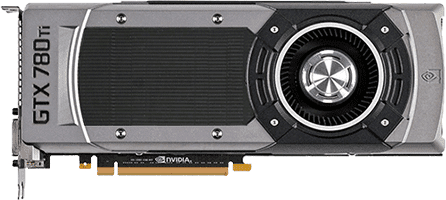

Graphics card overview
GeForce GTX 780 Ti
Nvidia
GeForce GTX 780 Ti
3072 Mb GDDR5
Released 7 Nov 2013
DESKTOP
Core configuration
| GPU | GK110B |
| Architecture | Nvidia_Kepler |
| Shaders : TMUs : ROPs | 2880 : 240 : 48 |
| Raytracing Cores | none |
| Performance | 5040.00 GFLOPs |
Memory configuration
| Memory Size | 3072 Mb |
| Memory Bus Width | 384 bit |
| Memory Speed | 1750 MHz
7000 MHz effective |
| Memory Bandwidth | 336.00 Gb/s |
Summary
Relative performance
Performance summary, based on benchmarks charts.
The GeForce GTX 780 Ti is a graphics card released by Nvidia on 7 Nov 2013. The graphics card houses the GK110B die, based on the Nvidia_Kepler architecture which packs 7,080 million transistors on a 28 nm, 561 mm² die.
GeForce GTX 780 Ti pros and cons
- Supports PhysX
- Supports G-Sync
- Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
- Based on an outdated architecture (Nvidia Kepler), there are less performance optimizations for current games and applications
Specifications
Compared to similar performing cards
|
GeForce GTX 780 Ti
|
GeForce GTX 1050 Ti
Compare
|
| Shader units |
2880 |
768 |
| ROPs |
48 |
32 |
| Graphics processor |
GK110B |
GP107 |
| Process size |
28 nm |
14 nm |
| Memory |
3072 Mb GDDR5 (1750 MHz
7000 MHz effective) |
4096 Mb GDDR5 (1752 MHz
7008 MHz effective) |
| Memory bus width |
384 bit |
128 bit |
| Memory bandwidth |
336.00 Gb/s |
112.10 Gb/s |
| Release date |
7 Nov 2013 |
25 Oct 2016 |
Benchmarks
Shadow of the Tomb Raider
-
GeForce GTX 780 Ti
31
-
GeForce GTX 1050 Ti
30
FPS (higher is better)
Shadow of the Tomb Raider
FPS (higher is better)
Shadow of the Tomb Raider
-
GeForce GTX 780 Ti
13
-
GeForce GTX 1050 Ti
10
FPS (higher is better)
