Graphics card overview

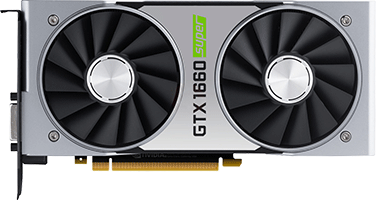

GeForce GTX 1660 SUPER

Nvidia

GeForce GTX 1660 SUPER

6144 Mb GDDR6 Released 29 Oct 2019 DESKTOP
GeForce GTX 1660 SUPER

Core configuration

GPUTU116
ArchitectureNvidia_Pascal
Shaders : TMUs : ROPs1408 : 88 : 48
Raytracing Coresnone
Performance5020.00 GFLOPs

Memory configuration

Memory Size6144 Mb
Memory Bus Width192 bit
Memory Speed1750 MHz
14000 MHz effective
Memory Bandwidth336.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX 1660 SUPER is a graphics card released by Nvidia on 29 Oct 2019. The graphics card houses the TU116 die, based on the Nvidia_Pascal architecture which packs 6,600 million transistors on a 12 nm, 284 mm² die.

GeForce GTX 1660 SUPER pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Based on an outdated architecture (Nvidia Pascal), there may be no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX 1660 SUPER GeForce GTX 1660 SUPER GeForce RTX 3050 8 GB GeForce RTX 3050 8 GB Compare Radeon RX 5500 XT Radeon RX 5500 XT Compare GeForce GTX 1660 GeForce GTX 1660 Compare GeForce GTX 1660 Ti GeForce GTX 1660 Ti Compare
Shader units 1408 2560 1408 1280 1536
ROPs 48 48 32 48 48
Graphics processor TU116 GA106 Navi 14 TU116 TU116
Process size 12 nm 8 nm 7 nm 12 nm 12 nm
Memory 6144 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 4096 Mb GDDR6 (1750 MHz
14000 MHz effective)		 6144 Mb GDDR5 (2000 MHz
8000 MHz effective)		 6144 Mb GDDR6 (1500 MHz
12000 MHz effective)
Memory bus width 192 bit 128 bit 128 bit 192 bit 192 bit
Memory bandwidth 336.00 Gb/s 224.00 Gb/s 224.00 Gb/s 192.00 Gb/s 288.00 Gb/s
Release date 29 Oct 2019 4 Jan 2022 12 Dec 2019 15 Mar 2019 22 Feb 2019

Benchmarks

Hitman III

  • GeForce RTX 3050 8 GB 41
  • GeForce GTX 1660 Ti 35
  • GeForce GTX 1660 SUPER 34
  • GeForce GTX 1660 32

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 3050 8 GB 56
  • GeForce GTX 1660 Ti 44
  • GeForce GTX 1660 SUPER 43
  • GeForce GTX 1660 40

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 3050 8 GB 43
  • GeForce GTX 1660 Ti 34
  • GeForce GTX 1660 SUPER 34
  • Radeon RX 5500 XT 31
  • GeForce GTX 1660 31

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 3050 8 GB 26
  • Radeon RX 5500 XT 17
  • GeForce GTX 1660 Ti 12
  • GeForce GTX 1660 SUPER 12
  • GeForce GTX 1660 11

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 3050 8 GB 90
  • GeForce GTX 1660 Ti 81
  • GeForce GTX 1660 SUPER 80
  • GeForce GTX 1660 68
  • Radeon RX 5500 XT 66

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 3050 8 GB 60
  • GeForce GTX 1660 Ti 52
  • GeForce GTX 1660 SUPER 51
  • GeForce GTX 1660 45
  • Radeon RX 5500 XT 43

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 3050 8 GB 31
  • GeForce GTX 1660 Ti 26
  • GeForce GTX 1660 SUPER 25
  • Radeon RX 5500 XT 22
  • GeForce GTX 1660 22

FPS (higher is better)

Far Cry 6

  • GeForce GTX 1660 SUPER 72
  • GeForce GTX 1660 Ti 71
  • GeForce RTX 3050 8 GB 71
  • GeForce GTX 1660 63
  • Radeon RX 5500 XT 60

FPS (higher is better)

Far Cry 6

  • GeForce GTX 1660 Ti 52
  • GeForce RTX 3050 8 GB 51
  • GeForce GTX 1660 SUPER 51
  • GeForce GTX 1660 46
  • Radeon RX 5500 XT 39

FPS (higher is better)

Far Cry 6

  • GeForce GTX 1660 SUPER 25
  • GeForce GTX 1660 Ti 25
  • GeForce GTX 1660 23
  • Radeon RX 5500 XT 18
  • GeForce RTX 3050 8 GB 6

FPS (higher is better)
