Graphics card overview

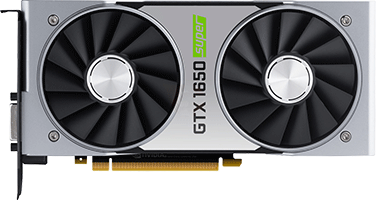

GeForce GTX 1650 SUPER

Nvidia

GeForce GTX 1650 SUPER

4096 Mb GDDR6 Released 22 Nov 2019 DESKTOP
GeForce GTX 1650 SUPER

Core configuration

GPUTU116
ArchitectureNvidia_Pascal
Shaders : TMUs : ROPs1280 : 80 : 32
Raytracing Coresnone
Performance4416.00 GFLOPs

Memory configuration

Memory Size4096 Mb
Memory Bus Width128 bit
Memory Speed1500 MHz
12000 MHz effective
Memory Bandwidth192.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX 1650 SUPER is a graphics card released by Nvidia on 22 Nov 2019. The graphics card houses the TU116 die, based on the Nvidia_Pascal architecture which packs 6,600 million transistors on a 12 nm, 284 mm² die.

GeForce GTX 1650 SUPER pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Based on an outdated architecture (Nvidia Pascal), there may be no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX 1650 SUPER GeForce GTX 1650 SUPER Radeon RX 6500 XT Radeon RX 6500 XT Compare Radeon RX 5500 XT Radeon RX 5500 XT Compare GeForce GTX 1660 GeForce GTX 1660 Compare Radeon RX 580 Radeon RX 580 Compare
Shader units 1280 1024 1408 1280 2304
ROPs 32 32 32 48 32
Graphics processor TU116 Navi 24 Navi 14 TU116 Ellesmere
Process size 12 nm 6 nm 7 nm 12 nm 14 nm
Memory 4096 Mb GDDR6 (1500 MHz
12000 MHz effective)		 4096 Mb GDDR6 (2250 MHz
18 Gbps effective)		 4096 Mb GDDR6 (1750 MHz
14000 MHz effective)		 6144 Mb GDDR5 (2000 MHz
8000 MHz effective)		 8192 Mb GDDR5 (2000 MHz
8000 MHz effective)
Memory bus width 128 bit 64 bit 128 bit 192 bit 256 bit
Memory bandwidth 192.00 Gb/s 144.00 Gb/s 224.00 Gb/s 192.00 Gb/s 256.00 Gb/s
Release date 22 Nov 2019 19 Jan 2022 12 Dec 2019 15 Mar 2019 1 Apr 2017

Benchmarks

Hitman III

  • Radeon RX 6500 XT 105
  • GeForce GTX 1650 SUPER 104
  • GeForce GTX 1660 98
  • Radeon RX 580 87

FPS (higher is better)

Hitman III

  • GeForce GTX 1650 SUPER 66
  • Radeon RX 6500 XT 64
  • Radeon RX 580 55

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce GTX 1660 68
  • Radeon RX 5500 XT 66
  • GeForce GTX 1650 SUPER 66
  • Radeon RX 6500 XT 64
  • Radeon RX 580 59

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce GTX 1660 45
  • Radeon RX 5500 XT 43
  • GeForce GTX 1650 SUPER 42
  • Radeon RX 6500 XT 40
  • Radeon RX 580 38

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 5500 XT 22
  • GeForce GTX 1660 22
  • Radeon RX 580 19
  • GeForce GTX 1650 SUPER 18

FPS (higher is better)

Far Cry 6

  • GeForce GTX 1660 63
  • Radeon RX 5500 XT 60
  • GeForce GTX 1650 SUPER 59
  • Radeon RX 580 52

FPS (higher is better)

Far Cry 6

  • GeForce GTX 1660 46
  • GeForce GTX 1650 SUPER 42
  • Radeon RX 5500 XT 39
  • Radeon RX 580 36
  • Radeon RX 6500 XT 13

FPS (higher is better)

Far Cry 6

  • GeForce GTX 1660 23
  • Radeon RX 5500 XT 18
  • Radeon RX 580 17
  • GeForce GTX 1650 SUPER 17

FPS (higher is better)
