Graphics card overview

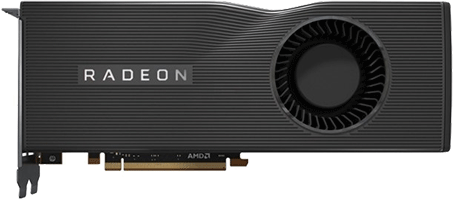

Radeon RX 5700 XT

AMD

Radeon RX 5700 XT

8192 Mb GDDR6 Released 7 Jul 2019 DESKTOP
Radeon RX 5700 XT

Core configuration

GPUNavi 10
ArchitectureAMD_RDNA_1_0
Shaders : TMUs : ROPs2560 : 256 : 64
Raytracing Coresnone
Performance8980.00 GFLOPs

Memory configuration

Memory Size8192 Mb
Memory Bus Width256 bit
Memory Speed1750 MHz
14000 MHz effective
Memory Bandwidth448.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The Radeon RX 5700 XT is a graphics card released by AMD on 7 Jul 2019. The graphics card houses the Navi 10 die, based on the AMD_RDNA_1_0 architecture which packs unknown transistors on a 7 nm, 254 mm² die.

Radeon RX 5700 XT pros and cons

  • Supports Direct3D 12 Async Compute
  • Supports FreeSync
  • Supports ReLive (allows game streaming/recording with minimum performance penalty)

Specifications

Compared to similar performing cards
Radeon RX 5700 XT Radeon RX 5700 XT Radeon RX 7600 Radeon RX 7600 Compare Radeon RX 6650 XT Radeon RX 6650 XT Compare Radeon RX 6600 Radeon RX 6600 Compare Radeon RX 6600 XT Radeon RX 6600 XT Compare
Shader units 2560 2048 2048 1792 2048
ROPs 64 64 64 64 64
Graphics processor Navi 10 Navi 33 Navi 23 Navi 23 Navi 23
Process size 7 nm 6 nm 7 nm 7 nm 7 nm
Memory 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (2250 MHz
18 Gbps effective)		 8192 Mb GDDR6 (2190 MHz
17.5 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (2000 MHz
16 Gbps effective)
Memory bus width 256 bit 128 bit 128 bit 128 bit 128 bit
Memory bandwidth 448.00 Gb/s 288.00 Gb/s 280.30 Gb/s 224.00 Gb/s 256.00 Gb/s
Release date 7 Jul 2019 24 May 2023 10 May 2022 13 Oct 2021 30 Jul 2021

Benchmarks

Hitman III

  • Radeon RX 6650 XT 198
  • Radeon RX 7600 191
  • Radeon RX 6600 XT 177
  • Radeon RX 5700 XT 176
  • Radeon RX 6600 148

FPS (higher is better)

Hitman III

  • Radeon RX 6650 XT 127
  • Radeon RX 7600 121
  • Radeon RX 5700 XT 120
  • Radeon RX 6600 XT 115
  • Radeon RX 6600 96

FPS (higher is better)

Hitman III

  • Radeon RX 5700 XT 67
  • Radeon RX 6650 XT 64
  • Radeon RX 7600 62
  • Radeon RX 6600 XT 57
  • Radeon RX 6600 48

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 124
  • Radeon RX 6650 XT 94
  • Radeon RX 6600 XT 86
  • Radeon RX 5700 XT 78
  • Radeon RX 6600 69

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 85
  • Radeon RX 6650 XT 66
  • Radeon RX 6600 XT 59
  • Radeon RX 5700 XT 59
  • Radeon RX 6600 50

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 7600 47
  • Radeon RX 6650 XT 36
  • Radeon RX 6600 XT 33
  • Radeon RX 5700 XT 33
  • Radeon RX 6600 27

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 7600 140
  • Radeon RX 6650 XT 138
  • Radeon RX 6600 XT 126
  • Radeon RX 5700 XT 119
  • Radeon RX 6600 105

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 7600 90
  • Radeon RX 6650 XT 88
  • Radeon RX 6600 XT 82
  • Radeon RX 5700 XT 78
  • Radeon RX 6600 68

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 7600 42
  • Radeon RX 6650 XT 42
  • Radeon RX 6600 XT 40
  • Radeon RX 5700 XT 40
  • Radeon RX 6600 33

FPS (higher is better)

Far Cry 6

  • Radeon RX 5700 XT 111
  • Radeon RX 6650 XT 111
  • Radeon RX 6600 XT 109
  • Radeon RX 7600 104

FPS (higher is better)

Far Cry 6

  • Radeon RX 6650 XT 80
  • Radeon RX 5700 XT 76
  • Radeon RX 7600 72
  • Radeon RX 6600 XT 72

FPS (higher is better)

Far Cry 6

  • Radeon RX 6650 XT 43
  • Radeon RX 5700 XT 43
  • Radeon RX 6600 XT 38
  • Radeon RX 7600 24

FPS (higher is better)
