Graphics card overview

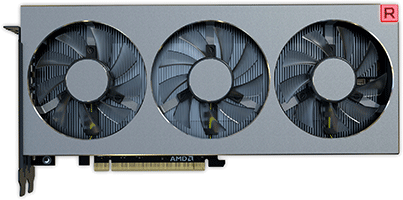

Radeon VII

AMD

Radeon VII

16384 Mb HBM2 Released 7 Feb 2019 DESKTOP
Radeon VII

Core configuration

GPUVega 20
Architecture105
Shaders : TMUs : ROPs3840 : 240 : 64
Raytracing Coresnone
Performance13824.00 GFLOPs

Memory configuration

Memory Size16384 Mb
Memory Bus Width4096 bit
Memory Speed1000 MHz
2000 MHz effective
Memory Bandwidth1024.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The Radeon VII is a graphics card released by AMD on 7 Feb 2019. The graphics card houses the Vega 20 die, based on the 105 architecture which packs 13,230 million transistors on a 7 nm, 331 mm² die.

Radeon VII pros and cons

  • Supports Direct3D 12 Async Compute
  • Supports FreeSync
  • Supports ReLive (allows game streaming/recording with minimum performance penalty)
  • Supports TrueAudio
  • Based on an outdated architecture (AMD GCN), there may be no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
Radeon VII Radeon VII Radeon RX 6650 XT Radeon RX 6650 XT Compare Radeon RX 6600 Radeon RX 6600 Compare Radeon RX 6600 XT Radeon RX 6600 XT Compare GeForce RTX 2080 Super GeForce RTX 2080 Super Compare
Shader units 3840 2048 1792 2048 3072
ROPs 64 64 64 64 64
Graphics processor Vega 20 Navi 23 Navi 23 Navi 23 TU104
Process size 7 nm 7 nm 7 nm 7 nm 12 nm
Memory 16384 Mb HBM2 (1000 MHz
2000 MHz effective)		 8192 Mb GDDR6 (2190 MHz
17.5 Gbps effective)		 8192 Mb GDDR6 (1750 MHz
14 Gbps effective)		 8192 Mb GDDR6 (2000 MHz
16 Gbps effective)		 8192 Mb GDDR6 (1940 MHz
15520 MHz effective)
Memory bus width 4096 bit 128 bit 128 bit 128 bit 256 bit
Memory bandwidth 1024.00 Gb/s 280.30 Gb/s 224.00 Gb/s 256.00 Gb/s 496.60 Gb/s
Release date 7 Feb 2019 10 May 2022 13 Oct 2021 30 Jul 2021 23 Jul 2019

Benchmarks

Assassins Creed: Valhalla

  • Radeon RX 6650 XT 94
  • Radeon RX 6600 XT 86
  • GeForce RTX 2080 Super 70
  • Radeon VII 70
  • Radeon RX 6600 69

FPS (higher is better)

Assassins Creed: Valhalla

  • Radeon RX 6650 XT 66
  • GeForce RTX 2080 Super 60
  • Radeon RX 6600 XT 59
  • Radeon VII 56
  • Radeon RX 6600 50

FPS (higher is better)

Assassins Creed: Valhalla

  • GeForce RTX 2080 Super 40
  • Radeon RX 6650 XT 36
  • Radeon VII 35
  • Radeon RX 6600 XT 33
  • Radeon RX 6600 27

FPS (higher is better)

Shadow of the Tomb Raider

  • Radeon RX 6650 XT 138
  • Radeon RX 6600 XT 126
  • GeForce RTX 2080 Super 123
  • Radeon VII 117
  • Radeon RX 6600 105

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2080 Super 94
  • Radeon RX 6650 XT 88
  • Radeon RX 6600 XT 82
  • Radeon VII 82
  • Radeon RX 6600 68

FPS (higher is better)

Shadow of the Tomb Raider

  • GeForce RTX 2080 Super 50
  • Radeon VII 44
  • Radeon RX 6650 XT 42
  • Radeon RX 6600 XT 40
  • Radeon RX 6600 33

FPS (higher is better)
