Graphics card overview

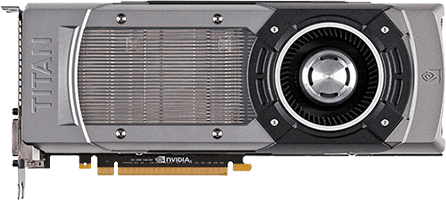

GeForce GTX TITAN

Nvidia

GeForce GTX TITAN

6144 Mb GDDR5 Released 19 Feb 2013 DESKTOP
GeForce GTX TITAN

Core configuration

GPUGK110
ArchitectureNvidia_Kepler
Shaders : TMUs : ROPs2688 : 224 : 48
Raytracing Coresnone
Performance4494.00 GFLOPs

Memory configuration

Memory Size6144 Mb
Memory Bus Width384 bit
Memory Speed1502 MHz
6008 MHz effective
Memory Bandwidth288.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX TITAN is a graphics card released by Nvidia on 19 Feb 2013. The graphics card houses the GK110 die, based on the Nvidia_Kepler architecture which packs 7,080 million transistors on a 28 nm, 561 mm² die.

GeForce GTX TITAN pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Based on an outdated architecture (Nvidia Kepler), there are less performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX TITAN GeForce GTX TITAN Radeon RX 470 Radeon RX 470 Compare Radeon R9 380X Radeon R9 380X Compare GeForce GTX 970 GeForce GTX 970 Compare GeForce GTX 780 Ti GeForce GTX 780 Ti Compare
Shader units 2688 2048 2048 1664 2880
ROPs 48 32 32 56 48
Graphics processor GK110 Ellesmere Antigua GM204 GK110B
Process size 28 nm 14 nm 28 nm 28 nm 28 nm
Memory 6144 Mb GDDR5 (1502 MHz
6008 MHz effective)		 4096 Mb GDDR5 (1650 MHz
6600 MHz effective)		 4096 Mb GDDR5 (1425 MHz
5700 MHz effective)		 4096 Mb GDDR5 (1753 MHz
7012 MHz effective)		 3072 Mb GDDR5 (1750 MHz
7000 MHz effective)
Memory bus width 384 bit 256 bit 256 bit 256 bit 384 bit
Memory bandwidth 288.00 Gb/s 211.20 Gb/s 182.40 Gb/s 224.40 Gb/s 336.00 Gb/s
Release date 19 Feb 2013 29 Jun 2016 19 Nov 2015 19 Sep 2014 7 Nov 2013

Benchmarks

Rise Of The Tomb Raider

  • GeForce GTX 970 63
  • Radeon RX 470 63
  • GeForce GTX 780 Ti 60
  • GeForce GTX TITAN 57
  • Radeon R9 380X 49

FPS (higher is better)

Rise Of The Tomb Raider

  • Radeon RX 470 44
  • GeForce GTX 970 42
  • GeForce GTX 780 Ti 41
  • GeForce GTX TITAN 38
  • Radeon R9 380X 35

FPS (higher is better)

Rise Of The Tomb Raider

  • GeForce GTX 780 Ti 21
  • Radeon RX 470 21
  • GeForce GTX TITAN 20
  • GeForce GTX 970 19
  • Radeon R9 380X 17

FPS (higher is better)
