Graphics card overview

GeForce GTX TITAN X (Pascal)

Nvidia

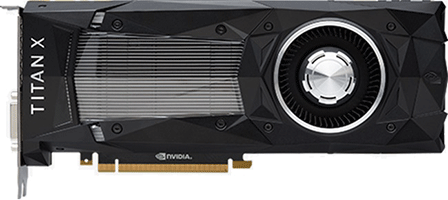

GeForce GTX TITAN X (Pascal)

12288 Mb GDDR5X Released 2 Aug 2016 DESKTOP
GeForce GTX TITAN X (Pascal)

Core configuration

GPUGP102
ArchitectureNvidia_Pascal
Shaders : TMUs : ROPs3584 : 224 : 96
Raytracing Coresnone
Performance10157.00 GFLOPs

Memory configuration

Memory Size12288 Mb
Memory Bus Width384 bit
Memory Speed1251 MHz
10008 MHz effective
Memory Bandwidth480.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX TITAN X (Pascal) is a graphics card released by Nvidia on 2 Aug 2016. The graphics card houses the GP102 die, based on the Nvidia_Pascal architecture which packs 12,000 million transistors on a 16 nm, 471 mm² die.

GeForce GTX TITAN X (Pascal) pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Based on an outdated architecture (Nvidia Pascal), there may be no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX TITAN X (Pascal) GeForce GTX TITAN X (Pascal) GeForce RTX 2080 Super GeForce RTX 2080 Super Compare GeForce RTX 2070 Super GeForce RTX 2070 Super Compare GeForce RTX 2060 Super GeForce RTX 2060 Super Compare Radeon RX 5700 XT Radeon RX 5700 XT Compare
Shader units 3584 3072 2560 2176 2560
ROPs 96 64 64 64 64
Graphics processor GP102 TU104 TU104 TU106 Navi 10
Process size 16 nm 12 nm 12 nm 12 nm 7 nm
Memory 12288 Mb GDDR5X (1251 MHz
10008 MHz effective)		 8192 Mb GDDR6 (1940 MHz
15520 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)		 8192 Mb GDDR6 (1750 MHz
14000 MHz effective)
Memory bus width 384 bit 256 bit 256 bit 256 bit 256 bit
Memory bandwidth 480.00 Gb/s 496.60 Gb/s 448.00 Gb/s 448.00 Gb/s 448.00 Gb/s
Release date 2 Aug 2016 23 Jul 2019 9 Jul 2019 9 Jul 2019 7 Jul 2019

Benchmarks

Strange Brigade

  • GeForce RTX 2080 Super 190
  • GeForce GTX TITAN X (Pascal) 170
  • GeForce RTX 2070 Super 165
  • Radeon RX 5700 XT 148
  • GeForce RTX 2060 Super 142

FPS (higher is better)

Strange Brigade

  • GeForce RTX 2080 Super 141
  • GeForce RTX 2070 Super 123
  • GeForce GTX TITAN X (Pascal) 123
  • Radeon RX 5700 XT 108
  • GeForce RTX 2060 Super 105

FPS (higher is better)

Strange Brigade

  • GeForce RTX 2080 Super 81
  • GeForce GTX TITAN X (Pascal) 72
  • GeForce RTX 2070 Super 71
  • Radeon RX 5700 XT 66
  • GeForce RTX 2060 Super 61

FPS (higher is better)
