Graphics card overview

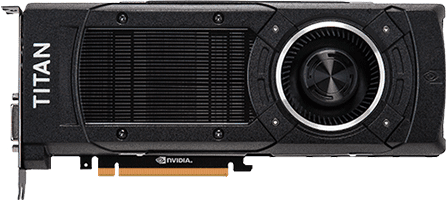

GeForce GTX TITAN X

Nvidia

GeForce GTX TITAN X

12288 Mb GDDR5 Released 17 Mar 2015 DESKTOP
GeForce GTX TITAN X

Core configuration

GPUGM200
ArchitectureNvidia_Maxwell_2_0
Shaders : TMUs : ROPs3072 : 192 : 96
Raytracing Coresnone
Performance6144.00 GFLOPs

Memory configuration

Memory Size12288 Mb
Memory Bus Width384 bit
Memory Speed1753 MHz
7012 MHz effective
Memory Bandwidth337.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX TITAN X is a graphics card released by Nvidia on 17 Mar 2015. The graphics card houses the GM200 die, based on the Nvidia_Maxwell_2_0 architecture which packs 8,000 million transistors on a 28 nm, 601 mm² die.

GeForce GTX TITAN X pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Based on an outdated architecture (Nvidia Maxwell), there may be no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX TITAN X GeForce GTX TITAN X GeForce GTX 1070 Ti GeForce GTX 1070 Ti Compare Radeon RX Vega 64 Radeon RX Vega 64 Compare Radeon RX Vega 56 Radeon RX Vega 56 Compare GeForce GTX 1070 GeForce GTX 1070 Compare
Shader units 3072 2432 4096 3584 1920
ROPs 96 64 64 64 64
Graphics processor GM200 GP104 Vega 10 Vega 10 GP104
Process size 28 nm 16 nm 14 nm 14 nm 16 nm
Memory 12288 Mb GDDR5 (1753 MHz
7012 MHz effective)		 8192 Mb GDDR5 (2002 MHz
8008 MHz effective)		 8192 Mb HBM2 (945 MHz
1890 MHz effective)		 8192 Mb HBM2 (800 MHz
1600 MHz effective)		 8192 Mb GDDR5 (2002 MHz
8008 MHz effective)
Memory bus width 384 bit 256 bit 2048 bit 2048 bit 256 bit
Memory bandwidth 337.00 Gb/s 256.30 Gb/s 483.80 Gb/s 409.60 Gb/s 256.30 Gb/s
Release date 17 Mar 2015 26 Oct 2017 8 Aug 2017 8 Aug 2017 10 Jun 2016

Benchmarks

Rise Of The Tomb Raider

  • Radeon RX Vega 64 46
  • GeForce GTX 1070 Ti 42
  • Radeon RX Vega 56 40
  • GeForce GTX 1070 38
  • GeForce GTX TITAN X 38

FPS (higher is better)

Doom (2016)

  • GeForce GTX TITAN X 200
  • Radeon RX Vega 64 200
  • GeForce GTX 1070 Ti 200
  • Radeon RX Vega 56 181
  • GeForce GTX 1070 179

FPS (higher is better)

Doom (2016)

  • GeForce GTX TITAN X 190
  • Radeon RX Vega 64 157
  • GeForce GTX 1070 Ti 134
  • GeForce GTX 1070 124
  • Radeon RX Vega 56 122

FPS (higher is better)

Doom (2016)

  • GeForce GTX TITAN X 97
  • Radeon RX Vega 64 79
  • GeForce GTX 1070 Ti 70
  • GeForce GTX 1070 64
  • Radeon RX Vega 56 63

FPS (higher is better)
