Graphics card overview

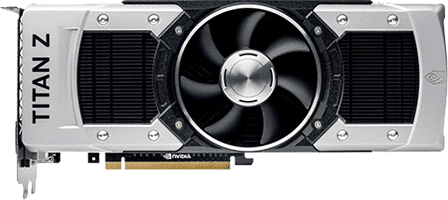

GeForce GTX TITAN Z

Nvidia

GeForce GTX TITAN Z

6144 Mb GDDR5 Released 28 May 2014 DESKTOP
GeForce GTX TITAN Z

Core configuration

GPUGK110B
ArchitectureNvidia_Kepler
Shaders : TMUs : ROPs2880 : 240 : 48
Raytracing Coresnone
Performance8122.00 GFLOPs

Memory configuration

Memory Size6144 Mb
Memory Bus Width384 bit x2
Memory Speed1750 MHz
7000 MHz effective
Memory Bandwidth672.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX TITAN Z is a graphics card released by Nvidia on 28 May 2014. The graphics card houses the GK110B die, based on the Nvidia_Kepler architecture which packs 7,080 million transistors on a 28 nm, 561 mm² die.

GeForce GTX TITAN Z pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Based on an outdated architecture (Nvidia Kepler), there are less performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX TITAN Z GeForce GTX TITAN Z GeForce GTX 1060 GeForce GTX 1060 Compare Radeon RX 480 Radeon RX 480 Compare GeForce GTX 1070 GeForce GTX 1070 Compare Radeon R9 Nano Radeon R9 Nano Compare
Shader units 2880 1280 2304 1920 4096
ROPs 48 48 32 64 64
Graphics processor GK110B GP106 Ellesmere GP104 Fiji
Process size 28 nm 16 nm 14 nm 16 nm 28 nm
Memory 6144 Mb GDDR5 (1750 MHz
7000 MHz effective)		 6144 Mb GDDR5 (2002 MHz
8008 MHz effective)		 8192 Mb GDDR5 (2000 MHz
8000 MHz effective)		 8192 Mb GDDR5 (2002 MHz
8008 MHz effective)		 4096 Mb HBM (500 MHz
1000 MHz effective)
Memory bus width 384 bit x2 192 bit 256 bit 256 bit 4096 bit
Memory bandwidth 672.00 Gb/s 192.20 Gb/s 256.00 Gb/s 256.30 Gb/s 512.00 Gb/s
Release date 28 May 2014 10 Jul 2016 29 Jun 2016 10 Jun 2016 27 Aug 2015

Benchmarks

Thief 2014

  • GeForce GTX 1070 104
  • Radeon R9 Nano 85
  • GeForce GTX TITAN Z 84
  • GeForce GTX 1060 79
  • Radeon RX 480 77

FPS (higher is better)

Thief 2014

  • GeForce GTX 1070 78
  • GeForce GTX TITAN Z 71
  • Radeon R9 Nano 65
  • Radeon RX 480 56
  • GeForce GTX 1060 56

FPS (higher is better)

Thief 2014

  • GeForce GTX 1070 40
  • GeForce GTX TITAN Z 39
  • Radeon R9 Nano 35
  • Radeon RX 480 29
  • GeForce GTX 1060 29

FPS (higher is better)
