Graphics card overview

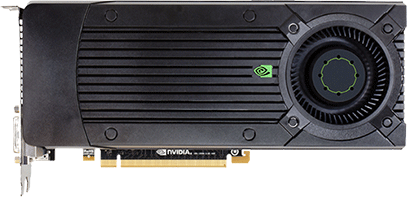

GeForce GTX 660 Ti

Nvidia

GeForce GTX 660 Ti

2048 Mb GDDR5 Released 16 Aug 2012 DESKTOP

Core configuration

GPU	GK104
Architecture	Nvidia_Kepler
Shaders : TMUs : ROPs	1344 : 112 : 24
Raytracing Cores	none
Performance	2460.00 GFLOPs

Memory configuration

Memory Size	2048 Mb
Memory Bus Width	192 bit
Memory Speed	1502 MHz 6008 MHz effective
Memory Bandwidth	144.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX 660 Ti is a graphics card released by Nvidia on 16 Aug 2012. The graphics card houses the GK104 die, based on the Nvidia_Kepler architecture which packs 3,540 million transistors on a 28 nm, 294 mm² die.

GeForce GTX 660 Ti pros and cons

Supports PhysX
Supports G-Sync
Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
Based on an outdated architecture (Nvidia Kepler), there are less performance optimizations for current games and applications

Specifications

Compared to similar performing cards

	GeForce GTX 660 Ti	Radeon RX 460 Compare	GeForce GTX 950 Compare	Radeon R7 370 Compare	Radeon R9 270X Compare
Shader units	1344	896	768	1024	1280
ROPs	24	16	32	32	32
Graphics processor	GK104	Baffin	GM206	Trinidad	Curacao
Process size	28 nm	14 nm	28 nm	28 nm	28 nm
Memory	2048 Mb GDDR5 (1502 MHz 6008 MHz effective)	2048 Mb GDDR5 (1750 MHz 7000 MHz effective)	2048 Mb GDDR5 (1653 MHz 6612 MHz effective)	2048 Mb GDDR5 (1400 MHz 5600 MHz effective)	2048 Mb GDDR5 (1400 MHz 5600 MHz effective)
Memory bus width	192 bit	128 bit	128 bit	256 bit	256 bit
Memory bandwidth	144.00 Gb/s	112.00 Gb/s	105.80 Gb/s	179.20 Gb/s	179.00 Gb/s
Release date	16 Aug 2012	29 Jun 2016	20 Aug 2015	18 Jun 2015	8 Oct 2013
