Graphics card overview

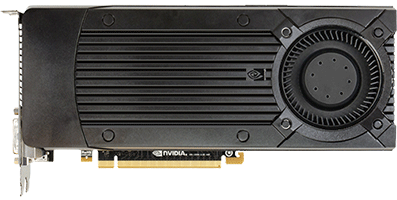

GeForce GTX 760

Nvidia

GeForce GTX 760

2048 Mb GDDR5 Released 25 Jun 2013 DESKTOP
GeForce GTX 760

Core configuration

GPUGK104
ArchitectureNvidia_Kepler
Shaders : TMUs : ROPs1152 : 96 : 32
Raytracing Coresnone
Performance2258.00 GFLOPs

Memory configuration

Memory Size2048 Mb
Memory Bus Width256 bit
Memory Speed1502 MHz
6008 MHz effective
Memory Bandwidth192.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX 760 is a graphics card released by Nvidia on 25 Jun 2013. The graphics card houses the GK104 die, based on the Nvidia_Kepler architecture which packs 3,540 million transistors on a 28 nm, 294 mm² die.

GeForce GTX 760 pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Based on an outdated architecture (Nvidia Kepler), there are less performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX 760 GeForce GTX 760 Radeon RX 460 Radeon RX 460 Compare GeForce GTX 950 GeForce GTX 950 Compare Radeon R7 370 Radeon R7 370 Compare Radeon R9 270X Radeon R9 270X Compare
Shader units 1152 896 768 1024 1280
ROPs 32 16 32 32 32
Graphics processor GK104 Baffin GM206 Trinidad Curacao
Process size 28 nm 14 nm 28 nm 28 nm 28 nm
Memory 2048 Mb GDDR5 (1502 MHz
6008 MHz effective)		 2048 Mb GDDR5 (1750 MHz
7000 MHz effective)		 2048 Mb GDDR5 (1653 MHz
6612 MHz effective)		 2048 Mb GDDR5 (1400 MHz
5600 MHz effective)		 2048 Mb GDDR5 (1400 MHz
5600 MHz effective)
Memory bus width 256 bit 128 bit 128 bit 256 bit 256 bit
Memory bandwidth 192.00 Gb/s 112.00 Gb/s 105.80 Gb/s 179.20 Gb/s 179.00 Gb/s
Release date 25 Jun 2013 29 Jun 2016 20 Aug 2015 18 Jun 2015 8 Oct 2013

Benchmarks

Far Cry Primal

  • GeForce GTX 950 37
  • GeForce GTX 760 35
  • Radeon RX 460 34

FPS (higher is better)

Far Cry Primal

  • GeForce GTX 950 24
  • GeForce GTX 760 23
  • Radeon RX 460 23

FPS (higher is better)

Far Cry Primal

  • GeForce GTX 950 8
  • GeForce GTX 760 6

FPS (higher is better)

Anno 2205

  • GeForce GTX 950 37
  • Radeon RX 460 31
  • GeForce GTX 760 30
  • Radeon R7 370 27

FPS (higher is better)

Anno 2205

  • GeForce GTX 950 23
  • Radeon RX 460 21
  • GeForce GTX 760 20
  • Radeon R7 370 20

FPS (higher is better)

Anno 2205

  • GeForce GTX 950 13
  • GeForce GTX 760 12
  • Radeon R7 370 11

FPS (higher is better)

Grand Theft Auto V

  • GeForce GTX 760 46
  • GeForce GTX 950 45
  • Radeon R7 370 43
  • Radeon RX 460 43
  • Radeon R9 270X 42

FPS (higher is better)

Grand Theft Auto V

  • Radeon RX 460 32
  • GeForce GTX 950 31
  • GeForce GTX 760 31
  • Radeon R7 370 31
  • Radeon R9 270X 28

FPS (higher is better)

The Witcher 3: Wild Hunt

  • Radeon RX 460 28
  • Radeon R9 270X 27
  • GeForce GTX 950 27
  • Radeon R7 370 25
  • GeForce GTX 760 22

FPS (higher is better)

The Witcher 3: Wild Hunt

  • Radeon R9 270X 21
  • Radeon RX 460 21
  • GeForce GTX 950 20
  • Radeon R7 370 19
  • GeForce GTX 760 17

FPS (higher is better)

The Witcher 3: Wild Hunt

  • Radeon R9 270X 11
  • GeForce GTX 950 11
  • Radeon R7 370 10
  • GeForce GTX 760 9

FPS (higher is better)

Battlefield Hardline

  • GeForce GTX 760 34
  • GeForce GTX 950 32
  • Radeon R7 370 31
  • Radeon R9 270X 29
  • Radeon RX 460 27

FPS (higher is better)
