Graphics card overview

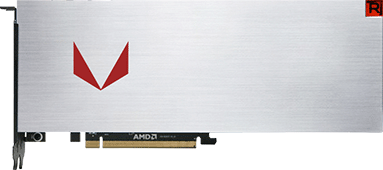

Radeon RX Vega 64 Liquid Cooling
AMD
Radeon RX Vega 64 Liquid Cooling
8192 Mb HBM2
Released 8 Aug 2017
DESKTOP
Core configuration
| GPU | Vega 10 |
| Architecture | 105 |
| Shaders : TMUs : ROPs | 4096 : 256 : 64 |
| Raytracing Cores | none |
| Performance | 13738.00 GFLOPs |
Memory configuration
| Memory Size | 8192 Mb |
| Memory Bus Width | 2048 bit |
| Memory Speed | 945 MHz
1890 MHz effective |
| Memory Bandwidth | 483.80 Gb/s |
Summary
Relative performance
Data interpolated by architecture, based on benchmarks charts.
The Radeon RX Vega 64 Liquid Cooling is a graphics card released by AMD on 8 Aug 2017. The graphics card houses the Vega 10 die, based on the 105 architecture which packs 12,500 million transistors on a 14 nm, 484 mm² die.
Radeon RX Vega 64 Liquid Cooling pros and cons
- Supports Direct3D 12 Async Compute
- Supports FreeSync
- Supports ReLive (allows game streaming/recording with minimum performance penalty)
- Supports TrueAudio
- Based on an outdated architecture (AMD GCN), there may be no performance optimizations for current games and applications
Specifications
Compared to similar performing cards
|
Radeon RX Vega 64 Liquid Cooling
|
GeForce RTX 3060
Compare
|
| Shader units |
4096 |
3840 |
| ROPs |
64 |
64 |
| Graphics processor |
Vega 10 |
GA106 |
| Process size |
14 nm |
8 nm |
| Memory |
8192 Mb HBM2 (945 MHz
1890 MHz effective) |
12288 Mb GDDR6 (1750 MHz
14 Gbps effective) |
| Memory bus width |
2048 bit |
192 bit |
| Memory bandwidth |
483.80 Gb/s |
336.00 Gb/s |
| Release date |
8 Aug 2017 |
1 Jan 1800 |
