Graphics card overview

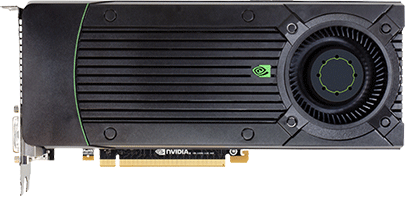

GeForce GTX 670

Nvidia

GeForce GTX 670

2048 Mb GDDR5 Released 10 May 2012 DESKTOP

Core configuration

GPU	GK104
Architecture	Nvidia_Kepler
Shaders : TMUs : ROPs	1344 : 112 : 32
Raytracing Cores	none
Performance	2460.00 GFLOPs

Memory configuration

Memory Size	2048 Mb
Memory Bus Width	256 bit
Memory Speed	1502 MHz 6008 MHz effective
Memory Bandwidth	192.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX 670 is a graphics card released by Nvidia on 10 May 2012. The graphics card houses the GK104 die, based on the Nvidia_Kepler architecture which packs 3,540 million transistors on a 28 nm, 294 mm² die.

GeForce GTX 670 pros and cons

Supports PhysX
Supports G-Sync
Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
Based on an outdated architecture (Nvidia Kepler), there are less performance optimizations for current games and applications

Specifications

Compared to similar performing cards

	GeForce GTX 670	GeForce GTX 950 Compare	GeForce GTX 960 Compare	Radeon R9 285 Compare	GeForce GTX 750 Ti Compare
Shader units	1344	768	1024	1792	640
ROPs	32	32	32	32	16
Graphics processor	GK104	GM206	GM206	Tonga	GM107
Process size	28 nm	28 nm	28 nm	28 nm	28 nm
Memory	2048 Mb GDDR5 (1502 MHz 6008 MHz effective)	2048 Mb GDDR5 (1653 MHz 6612 MHz effective)	2048 Mb GDDR5 (1753 MHz 7012 MHz effective)	2048 Mb GDDR5 (1375 MHz 5500 MHz effective)	2048 Mb GDDR5 (1350 MHz 5400 MHz effective)
Memory bus width	256 bit	128 bit	128 bit	256 bit	128 bit
Memory bandwidth	192.00 Gb/s	105.80 Gb/s	112.20 Gb/s	176.00 Gb/s	86.40 Gb/s
Release date	10 May 2012	20 Aug 2015	22 Jan 2015	2 Sep 2014	18 Feb 2014
