Graphics card overview

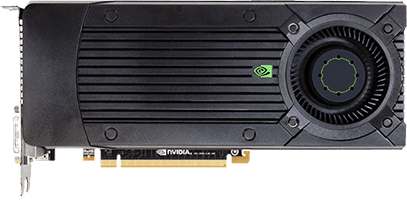

GeForce GTX 650 Ti Boost

Nvidia

GeForce GTX 650 Ti Boost

2048 Mb GDDR5 Released 26 Mar 2013 DESKTOP

Core configuration

GPU	GK106
Architecture	Nvidia_Kepler
Shaders : TMUs : ROPs	768 : 64 : 24
Raytracing Cores	none
Performance	1505.00 GFLOPs

Memory configuration

Memory Size	2048 Mb
Memory Bus Width	192 bit
Memory Speed	1502 MHz 6008 MHz effective
Memory Bandwidth	144.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

The GeForce GTX 650 Ti Boost is a graphics card released by Nvidia on 26 Mar 2013. The graphics card houses the GK106 die, based on the Nvidia_Kepler architecture which packs 2,540 million transistors on a 28 nm, 221 mm² die.

GeForce GTX 650 Ti Boost pros and cons

Supports PhysX
Supports G-Sync
Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
Based on an outdated architecture (Nvidia Kepler), there are less performance optimizations for current games and applications

Specifications

Compared to similar performing cards

	GeForce GTX 650 Ti Boost	GeForce GTX 750 Compare	Radeon R7 265 Compare	Radeon R7 260X Compare	GeForce GTX 660 Compare
Shader units	768	512	1024	896	960
ROPs	24	16	32	16	24
Graphics processor	GK106	GM107	Pitcairn	Bonaire	GK106
Process size	28 nm	28 nm	28 nm	28 nm	28 nm
Memory	2048 Mb GDDR5 (1502 MHz 6008 MHz effective)	1024 Mb GDDR5 (1253 MHz 5012 MHz effective)	2048 Mb GDDR5 (1400 MHz 5600 MHz effective)	2048 Mb GDDR5 (1625 MHz 6500 MHz effective)	2048 Mb GDDR5 (1502 MHz 6008 MHz effective)
Memory bus width	192 bit	128 bit	256 bit	128 bit	192 bit
Memory bandwidth	144.00 Gb/s	80.20 Gb/s	179.20 Gb/s	104.00 Gb/s	144.00 Gb/s
Release date	26 Mar 2013	18 Feb 2014	13 Feb 2014	8 Oct 2013	6 Sep 2012
