Graphics card overview

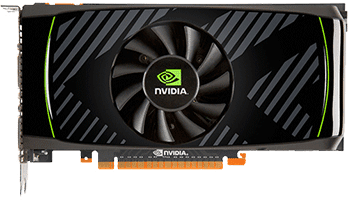

GeForce GTX 550 Ti
Nvidia
GeForce GTX 550 Ti
1024 Mb GDDR5
Released 15 Mar 2011
DESKTOP
Core configuration
| GPU | GF116 |
| Architecture | Nvidia_Fermi |
| Shaders : TMUs : ROPs | 192 : 32 : 24 |
| Raytracing Cores | none |
| Performance | 691.20 GFLOPs |
Memory configuration
| Memory Size | 1024 Mb |
| Memory Bus Width | 192 bit |
| Memory Speed | 1026 MHz
4104 MHz effective |
| Memory Bandwidth | 98.50 Gb/s |
Summary
Relative performance
Performance summary, based on benchmarks charts.
The GeForce GTX 550 Ti is a graphics card released by Nvidia on 15 Mar 2011. The graphics card houses the GF116 die, based on the Nvidia_Fermi architecture which packs 1,170 million transistors on a 40 nm, 238 mm² die.
GeForce GTX 550 Ti pros and cons
- Supports PhysX
- Based on an outdated architecture (Nvidia Fermi), there are no performance optimizations for current games and applications
Specifications
Compared to similar performing cards
|
GeForce GTX 550 Ti
|
| Shader units |
192 |
| ROPs |
24 |
| Graphics processor |
GF116 |
| Process size |
40 nm |
| Memory |
1024 Mb GDDR5 (1026 MHz
4104 MHz effective) |
| Memory bus width |
192 bit |
| Memory bandwidth |
98.50 Gb/s |
| Release date |
15 Mar 2011 |
Benchmarks
Hitman Absolution
FPS (higher is better)
