Graphics card overview

GeForce GTX 570

Nvidia

GeForce GTX 570

1280 Mb GDDR5 Released 7 Dec 2010 DESKTOP
GeForce GTX 570

Core configuration

GPUGF110
ArchitectureNvidia_Fermi
Shaders : TMUs : ROPs480 : 60 : 40
Raytracing Coresnone
Performance1405.00 GFLOPs

Memory configuration

Memory Size1280 Mb
Memory Bus Width320 bit
Memory Speed950 MHz
3800 MHz effective
Memory Bandwidth152.00 Gb/s

Summary

Relative performance

Performance summary, based on benchmarks charts.

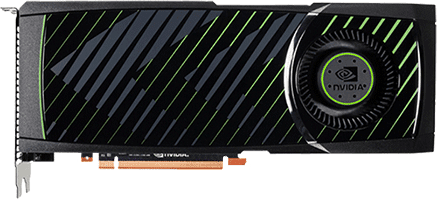

The GeForce GTX 570 is a graphics card released by Nvidia on 7 Dec 2010. The graphics card houses the GF110 die, based on the Nvidia_Fermi architecture which packs 3,000 million transistors on a 40 nm, 520 mm² die.

GeForce GTX 570 pros and cons

  • Supports PhysX
  • Based on an outdated architecture (Nvidia Fermi), there are no performance optimizations for current games and applications

Specifications

Compared to similar performing cards
GeForce GTX 570 GeForce GTX 570 GeForce GTX 750 Ti GeForce GTX 750 Ti Compare GeForce GTX 750 GeForce GTX 750 Compare Radeon R7 265 Radeon R7 265 Compare Radeon R7 260X Radeon R7 260X Compare
Shader units 480 640 512 1024 896
ROPs 40 16 16 32 16
Graphics processor GF110 GM107 GM107 Pitcairn Bonaire
Process size 40 nm 28 nm 28 nm 28 nm 28 nm
Memory 1280 Mb GDDR5 (950 MHz
3800 MHz effective)		 2048 Mb GDDR5 (1350 MHz
5400 MHz effective)		 1024 Mb GDDR5 (1253 MHz
5012 MHz effective)		 2048 Mb GDDR5 (1400 MHz
5600 MHz effective)		 2048 Mb GDDR5 (1625 MHz
6500 MHz effective)
Memory bus width 320 bit 128 bit 128 bit 256 bit 128 bit
Memory bandwidth 152.00 Gb/s 86.40 Gb/s 80.20 Gb/s 179.20 Gb/s 104.00 Gb/s
Release date 7 Dec 2010 18 Feb 2014 18 Feb 2014 13 Feb 2014 8 Oct 2013

Benchmarks

Medal Of Honor Warfighter

  • Radeon R7 265 39
  • GeForce GTX 570 37
  • GeForce GTX 750 Ti 36
  • GeForce GTX 750 32
  • Radeon R7 260X 29

FPS (higher is better)

Battlefield 4

  • Radeon R7 265 44
  • GeForce GTX 750 Ti 37
  • GeForce GTX 570 34
  • Radeon R7 260X 33
  • GeForce GTX 750 32

FPS (higher is better)

Metro Last Light

  • Radeon R7 265 31
  • GeForce GTX 570 31
  • Radeon R7 260X 26
  • GeForce GTX 750 25

FPS (higher is better)
