Graphics card overview

TITAN RTX

Nvidia

TITAN RTX

24576 Mb GDDR6 Released 18 Dec 2018 DESKTOP
TITAN RTX

Core configuration

GPUTU102
ArchitectureNvidia_Turing
Shaders : TMUs : ROPs4608 : 288 : 96
Raytracing Coresnone
Performance16312.00 GFLOPs

Memory configuration

Memory Size24576 Mb
Memory Bus Width384 bit
Memory Speed1750 MHz
14000 MHz effective
Memory Bandwidth672.00 Gb/s

Summary

Relative performance

Data interpolated by architecture, based on benchmarks charts.

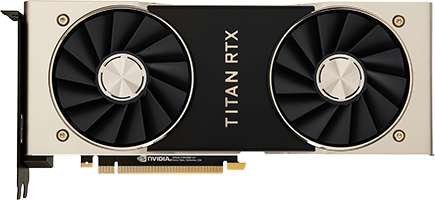

The TITAN RTX is a graphics card released by Nvidia on 18 Dec 2018. The graphics card houses the TU102 die, based on the Nvidia_Turing architecture which packs 18,600 million transistors on a 12 nm, 754 mm² die.

TITAN RTX pros and cons

  • Supports PhysX
  • Supports G-Sync
  • Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
  • Supports Direct3D 12 Async Compute
  • Supports DirectX Raytracing (DXR)
  • Supports Deep Learning Super-Sampling (DLSS)

Specifications

Compared to similar performing cards
TITAN RTX TITAN RTX GeForce RTX 4070 Ti GeForce RTX 4070 Ti Compare GeForce RTX 4080 12 GB GeForce RTX 4080 12 GB Compare GeForce RTX 4070 GeForce RTX 4070 Compare
Shader units 4608 7680 7680 7680
ROPs 96 80 80 80
Graphics processor TU102 AD104 AD104 AD104
Process size 12 nm 4 nm 4 nm 4 nm
Memory 24576 Mb GDDR6 (1750 MHz
14000 MHz effective)		 12288 Mb GDDR6X (1313 MHz
21 Gbps effective)		 12288 Mb GDDR6X (1312 MHz
21 Gbps effective)		 12288 Mb GDDR6X (1325 MHz
21.2 Gbps effective)
Memory bus width 384 bit 192 bit 192 bit 192 bit
Memory bandwidth 672.00 Gb/s 504.20 Gb/s 503.80 Gb/s 508.80 Gb/s
Release date 18 Dec 2018 3 Jan 2023 20 Sep 2022 1 Jan 1800
