Graphics card comparison
Radeon RX 6700 XT vs TITAN V
AMD
Radeon RX 6700 XT
12288 Mb GDDR6
Released UNRELEASED
DESKTOP
VS

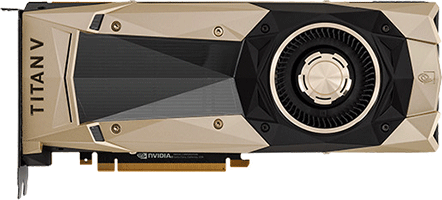

Nvidia
TITAN V
12288 Mb HBM2
Released 7 Dec 2017
DESKTOP
Summary
Reasons to consider the Radeon RX 6700 XT
- 100 watts lower power draw. This might be a strong point if your current power supply is not enough to handle the TITAN V .
- Supports Direct3D 12 Async Compute
- Supports FreeSync
- Supports ReLive (allows game streaming/recording with minimum performance penalty)
- Infinity Cache allows to deliver up to 3.25x the effective memory bandwidth
- Supports DirectX Raytracing (DXR)
Reasons to consider the TITAN V
- Supports PhysX
- Supports G-Sync
- Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
- Supports Direct3D 12 Async Compute.
Our verdict
No clear winner declared
We have no data to declare a winner at this time.
Specifications
Core configuration
| Radeon RX 6700 XT | TITAN V |
|---|
| GPU Name | Navi 22 (Navi 22 XT) | GV100 (GV100-400-A1) |
| Fab Process | 7 nm | 12 nm |
| Die Size | 0 mm² | 815 mm² |
| Transistors | unknown | 21,100 million |
| Shaders | 2560 | 5120 |
| Compute Units | 40 | 80 |
| Core clock | 1489 MHz | 1200 MHz |
| ROPs | 64 | 96 |
| TMUs | 192 | 320 |
Memory configuration
| Radeon RX 6700 XT | TITAN V |
|---|
| Memory Type | GDDR6 | HBM2 |
| Bus Width | 192 bit | 3072 bit |
| Memory Speed | 2000 MHz
16 Gbps effective | 850 MHz
1700 MHz effective |
| Memory Size | 12288 Mb | 12288 Mb |
Additional details
| Radeon RX 6700 XT | TITAN V |
|---|
| TDP | 150 watts | 250 watts |
| Release Date | UNRELEASED | 7 Dec 2017 |
Raw performance comparison
Pixel Rate
- Radeon RX 6700 XT128.00 GP/s
- TITAN V139.70 GP/s
GigaPixels - higher is better
Texel Rate
- Radeon RX 6700 XT384.00 GT/s
- TITAN V465.60 GT/s
GigaTexels - higher is better
Memory bandwidth
- Radeon RX 6700 XT384.00 GB/s
- TITAN V652.80 GB/s
GB/s - higher is better
Single precision performance
- Radeon RX 6700 XT10240.00 GFLOPs
- TITAN V14899.00 GFLOPs
GFLOPs - higher is better
