Graphics card comparison
Radeon RX 6750 XT vs GeForce RTX 3070
AMD

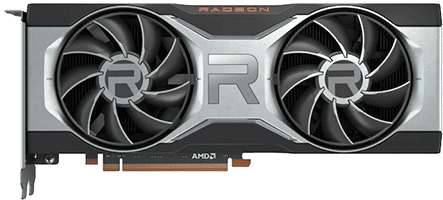

Radeon RX 6750 XT
12288 Mb GDDR6
Released 3 Mar 2022
DESKTOP
VS
Nvidia
GeForce RTX 3070
8192 Mb GDDR6
Released 1 Sep 2020
DESKTOP
Summary
Gaming performance index
- Radeon RX 6750 XT115%
- GeForce RTX 3070100%
Relative performance
Reasons to consider the Radeon RX 6750 XT
- 15% higher gaming performance.
- This is a much newer product, it might have better long term support.
- Supports Direct3D 12 Async Compute
- Supports FreeSync
- Supports ReLive (allows game streaming/recording with minimum performance penalty)
- Infinity Cache allows to deliver up to 3.25x the effective memory bandwidth
- Supports DirectX Raytracing (DXR)
Reasons to consider the GeForce RTX 3070
- Supports PhysX
- Supports G-Sync
- Supports ShadowPlay (allows game streaming/recording with minimum performance penalty)
- Supports Direct3D 12 Async Compute
- Supports DirectX Raytracing (DXR)
- Supports Deep Learning Super-Sampling (DLSS)
Our verdict
HWSpot recommends the Radeon RX 6750 XT
The Radeon RX 6750 XT is the better performing card based on the game benchmark suite used (18 combinations of games and resolutions).
Specifications
Core configuration
| Radeon RX 6750 XT | GeForce RTX 3070 |
|---|
| GPU Name | Navi 22 (Navi 22 KXT
(215-127000144)) | GA104 (GA104-300-A1) |
| Fab Process | 7 nm | 8 nm |
| Die Size | 335 mm² | 392 mm² |
| Transistors | 17,200 million | 17,400 million |
| Shaders | 2560 | 5888 |
| Raytracing Cores | 40 | none |
| Compute Units | 40 | 46 |
| Core clock | 2200 MHz | 1500 MHz |
| ROPs | 64 | 64 |
| TMUs | 160 | 184 |
Memory configuration
| Radeon RX 6750 XT | GeForce RTX 3070 |
|---|
| Memory Type | GDDR6 | GDDR6 |
| Bus Width | 192 bit | 256 bit |
| Memory Speed | 2250 MHz
18 Gbps effective | 1750 MHz
14 Gbps effective |
| Memory Size | 12288 Mb | 8192 Mb |
Additional details
| Radeon RX 6750 XT | GeForce RTX 3070 |
|---|
| TDP | 250 watts | 220 watts |
| Release Date | 3 Mar 2022 | 1 Sep 2020 |
Raw performance comparison
Pixel Rate
- Radeon RX 6750 XT166.40 GP/s
- GeForce RTX 3070110.40 GP/s
GigaPixels - higher is better
Texel Rate
- Radeon RX 6750 XT416.00 GT/s
- GeForce RTX 3070317.40 GT/s
GigaTexels - higher is better
Memory bandwidth
- Radeon RX 6750 XT432.00 GB/s
- GeForce RTX 3070448.00 GB/s
GB/s - higher is better
Single precision performance
- Radeon RX 6750 XT13310.00 GFLOPs
- GeForce RTX 307020310.00 GFLOPs
GFLOPs - higher is better
Game benchmarks
Assassins Creed: Valhalla
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT140
- GeForce RTX 307093
FPS (higher is better)
Codemasters Formula 1 2021
Ultra High Quality TAA, Bahrain, DirectX12, Windows 10 x64
- Radeon RX 6750 XT259
- GeForce RTX 3070201
FPS (higher is better)
Far Cry 6
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT131
- GeForce RTX 3070117
FPS (higher is better)
Forza Horizon 5
Extreme Quality, DirectX12, Windows 10 x64
- Radeon RX 6750 XT111
- GeForce RTX 307098
FPS (higher is better)
Hitman III
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT264
- GeForce RTX 3070212
FPS (higher is better)
Shadow of the Tomb Raider
Highest detail, Pure Hair On, HBAO+, DirectX 12, Windows 11 x 64
- Radeon RX 6750 XT226
- GeForce RTX 3070161
FPS (higher is better)
Assassins Creed: Valhalla
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT97
- GeForce RTX 307076
FPS (higher is better)
Codemasters Formula 1 2021
Ultra High Quality TAA, Bahrain, DirectX12, Windows 10 x64
- Radeon RX 6750 XT195
- GeForce RTX 3070151
FPS (higher is better)
Far Cry 6
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT106
- GeForce RTX 307095
FPS (higher is better)
Forza Horizon 5
Extreme Quality, DirectX12, Windows 10 x64
- Radeon RX 6750 XT92
- GeForce RTX 307085
FPS (higher is better)
Hitman III
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT170
- GeForce RTX 3070152
FPS (higher is better)
Shadow of the Tomb Raider
Highest detail, Pure Hair On, HBAO+, DirectX 12, Windows 11 x 64
- Radeon RX 6750 XT125
- GeForce RTX 3070122
FPS (higher is better)
Assassins Creed: Valhalla
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT51
- GeForce RTX 307046
FPS (higher is better)
Codemasters Formula 1 2021
Ultra High Quality TAA, Bahrain, DirectX12, Windows 10 x64
- Radeon RX 6750 XT111
- GeForce RTX 307093
FPS (higher is better)
Far Cry 6
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT56
- GeForce RTX 307058
FPS (higher is better)
Forza Horizon 5
Extreme Quality, DirectX12, Windows 10 x64
- Radeon RX 6750 XT60
- GeForce RTX 307063
FPS (higher is better)
Hitman III
Ultra quality - DirectX12 Windows 11
- Radeon RX 6750 XT88
- GeForce RTX 307085
FPS (higher is better)
Shadow of the Tomb Raider
Highest detail, Pure Hair On, HBAO+, DirectX 12, Windows 11 x 64
- Radeon RX 6750 XT62
- GeForce RTX 307064
FPS (higher is better)
