Graphics card comparison
Radeon RX 580X vs Radeon RX 580 2048SP
AMD

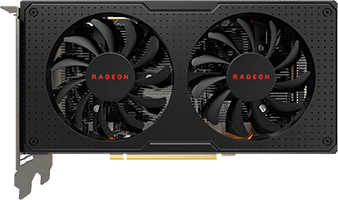

Radeon RX 580X
8192 Mb GDDR5
Released 11 Apr 2018
DESKTOP
VS
AMD
Radeon RX 580 2048SP
4096 Mb GDDR5
Released 15 Oct 2018
DESKTOP
Summary
Reasons to consider the Radeon RX 580X
- Supports Direct3D 12 Async Compute
- Supports FreeSync
- Supports ReLive (allows game streaming/recording with minimum performance penalty)
- Supports TrueAudio
- Based on an outdated architecture (AMD GCN), there may be no performance optimizations for current games and applications
Reasons to consider the Radeon RX 580 2048SP
- Supports Direct3D 12 Async Compute
- Supports FreeSync
- Supports ReLive (allows game streaming/recording with minimum performance penalty)
- Supports TrueAudio
- Based on an outdated architecture (AMD GCN), there may be no performance optimizations for current games and applications
Our verdict
No clear winner declared
We have no data to declare a winner at this time.
Specifications
Core configuration
| Radeon RX 580X | Radeon RX 580 2048SP |
|---|
| GPU Name | Polaris 20 (Polaris 20 XTX
<br>
<span title="Chip code">(215-0910038)</span>) | Polaris 20 (Polaris 20 XL
<br>
<span title="Chip code">(215-0910052)</span>) |
| Fab Process | 14 nm | 14 nm |
| Die Size | 244 mm² | 244 mm² |
| Transistors | 5,700 million | 5,700 million |
| Shaders | 2304 | 2048 |
| Compute Units | 36 | 32 |
| Core clock | 1257 MHz | 1168 MHz |
| ROPs | 32 | 32 |
| TMUs | 144 | 128 |
Memory configuration
| Radeon RX 580X | Radeon RX 580 2048SP |
|---|
| Memory Type | GDDR5 | GDDR5 |
| Bus Width | 256 bit | 256 bit |
| Memory Speed | 2000 MHz
8000 MHz effective | 1750 MHz
7000 MHz effective |
| Memory Size | 8192 Mb | 4096 Mb |
Additional details
| Radeon RX 580X | Radeon RX 580 2048SP |
|---|
| TDP | 185 watts | 150 watts |
| Release Date | 11 Apr 2018 | 15 Oct 2018 |
Raw performance comparison
Pixel Rate
- Radeon RX 580X42.88 GP/s
- Radeon RX 580 2048SP41.09 GP/s
GigaPixels - higher is better
Texel Rate
- Radeon RX 580X193.00 GT/s
- Radeon RX 580 2048SP164.40 GT/s
GigaTexels - higher is better
Memory bandwidth
- Radeon RX 580X256.00 GB/s
- Radeon RX 580 2048SP224.00 GB/s
GB/s - higher is better
Single precision performance
- Radeon RX 580X6175.00 GFLOPs
- Radeon RX 580 2048SP5259.00 GFLOPs
GFLOPs - higher is better
